NEW!

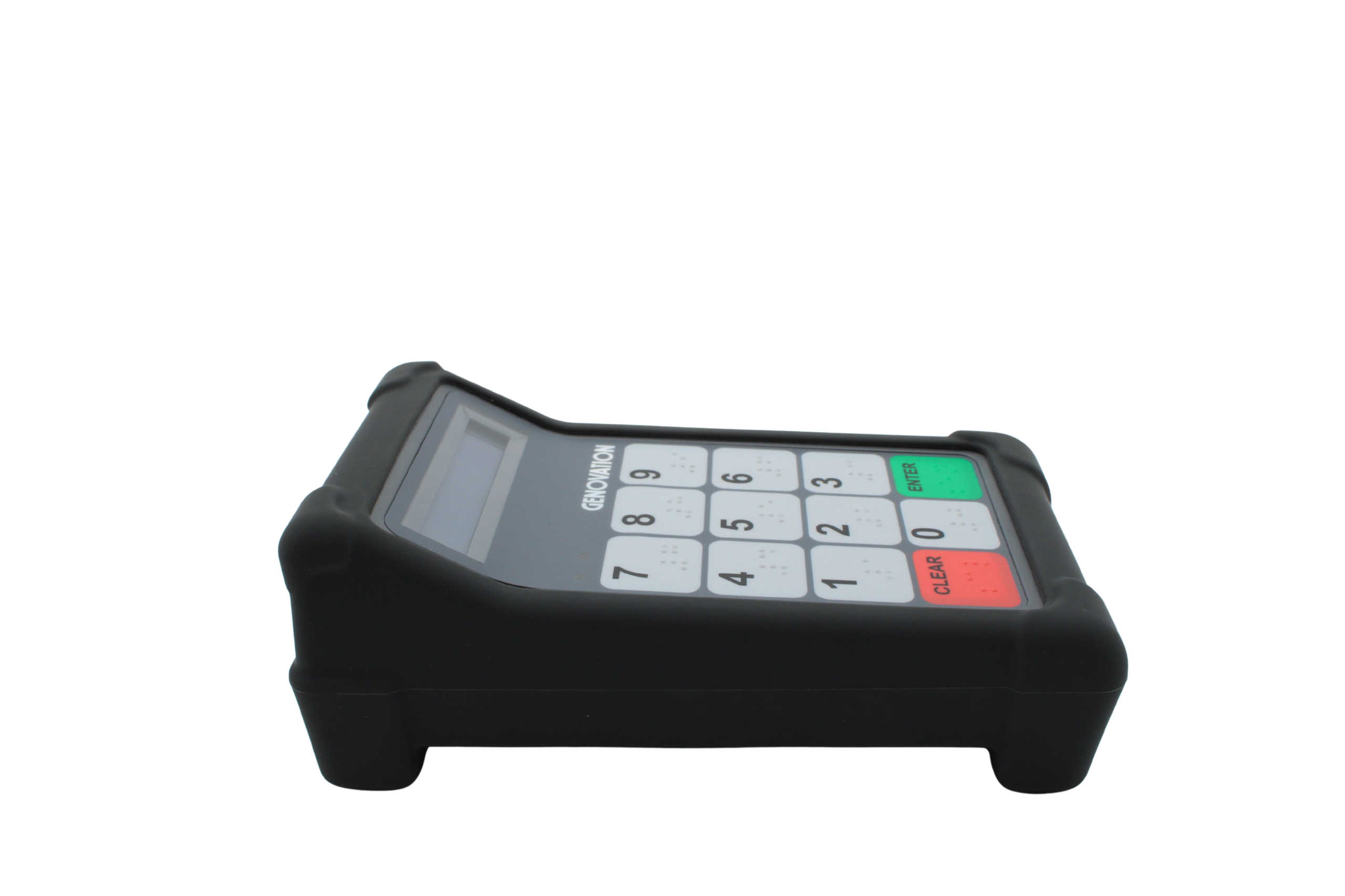

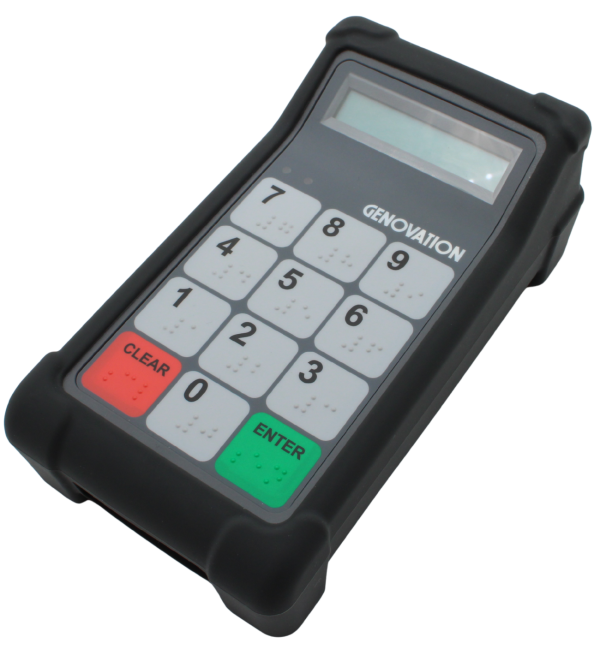

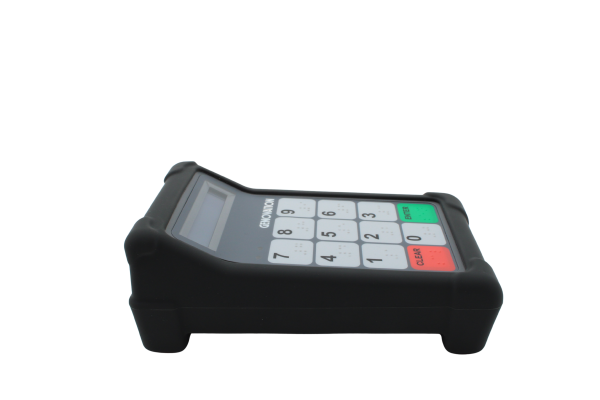

MiniTerm 909 or 909-K (With USB Keyboard Preset)
The MiniTerm 909 is specifically designed for K12 school lunch and school cafeteria applications with extra large soft touch buttons for children, braille compliance, high contrast LCD display, and a sleek enclosure engineered for easy surface cleaning and sanitizing. Fully programmable with our built-in menu system, or with our advanced software. Operates as a USB Keyboard, or USB Virtual serial device for maximum software compatibility.
Scanner options: “909-S” = 1D (linear) or “909-QR” = 2D (linear and QR).
909-K Sales Sheet
Share:
| Mechanical Data: | |
| Life Cycles | 2 x 107 |
| Key Type | New braille compliant membrane (20,000,000+ operations) |
| Operating Force | 0.686N (79gf) |
| Color | Dark gray |
| Number of Keys | 12 |
| Key Roll-Over | Selectable 1 or 2 key |
| Electrical Data: | Memory | FLASH+EEPROM non-volatile, >100 year retention |
| LCD Display: | |
| Type | High-Contrast 2×16 Super-Twist “STN” |
| Backlight | Yes (LED) |
| Light Emitting Diodes: | |
| Quantity | 2 |
| Color(s) | 1 Green, 1 Red – Both user programmable |
| Dimensions: | |
| Length x Width x Height | 18.5cm x 8.25cm x 5.3cm (7.25” x 3.5” x 2.25”) |
| Environmental: | |
| Operating Temperature | 0 to 70 degrees C (32 to 158 degrees F) |
| Operating Humidity | 0% to 98% non-condensing |
| FCC Rating | Class B Device |
| Weight: | |
| Keypad (no options) | 0.3kg (0.65lbs) |
| Single Keypad Ship Weight | 1.0kg (2.0lbs) |
| Interface: USB | |
| Type | USB 1.0, 1.1 & 2.0 compliant, bus powered |
| Cable Length | Included 6ft (1.8m), detachable via RJ-45 connection Optional 25ft (7.6m) cable available |
| Connection | RJ-45 to USB standard Type A |
| Data Rate | USB Full Speed |
| Internal Reader Options: | |
| Barcode Scanner “S” Option = 1D (linear only) | Front firing, visible red beam |
| Barcode Scanner “QR” Option = 2D (linear and QR) | Front firing, visible red beam, and white flashlight for dimly lit rooms |
| RFID Reader (13.56Mhz) | ISO14443A/B/C, ISO15693, NFC, MiFare 1k, HID iClass, nTag |
| RFID Reader (125Khz) | HID PROX2, EM4100 |
| Popular Accessories | ||
 |
 |
 |
| USB Cable 6ft RJ45 to USB Type A | USB Cable 6ft RJ45 to USB Type C | Keypad Stand |
|
File Type
|
OS Supported
|
File(s)
|
File Name
|
|---|---|---|---|
|
Software v9
|
Windows 2K/XP, Vista, 7, 8, 10 (March 2016)
|
MiniTermProSetup_v9_setup.exe (6 MB)
|
|
|
Release Notes
|
n/a
|
MiniTermPro.txt (4 KB)
|
|
Manual
|
File(s)
|
File Type
|
|---|---|---|
|
MiniTerm Quick Set-up Guide
|
PDF File
|
|
|
MiniTerm User/Developer Manual (May 2011, 1MB)
|
PDF File
|
|
|
MiniTerm HID Keyboard Setup Brief (Configuring MiniTerm as MiniTerm-K)
|
PDF File
|
|
|
MacroMaster Advanced Mode Manual (Oct. 2009, 1MB)
|
PDF File
|
|
|
MiniTerm Low-Level USB Application Note
|
PDF File
|
|
|
MiniTerm Low-Level USB Application Note Files
|
RAR Archive
|
|
|
Sharp ECR Application Note Using a MiniTerm with a Sharp Electronic Cash Register
|
PDF File
|
|
|
Using the MiniTerm as a Serial LCD (including LCD Smartie)
|
PDF File
|
|
|
Genovation LCD Smartie display plug-in
|
ZIP Archive
|
|
Description
|
Comment
|
File(s)
|
File Type
|
|---|---|---|---|
|
Firmware v5.60 (May 2011)
|
» Upgrade using RS232 cable!
» See "Release Notes" above. » Use browser Save As... |
Call!
|
MiniTerm_upg_v5_60.upg (59 KB)
|
|
Firmware v6.10 (Dec 2011)
|
» Upgrade using RS232 cable!
» See "Release Notes" above. » Use browser Save As... |
Call!
|
MiniTerm_upg_v6_10.upg (59 KB)
|
|
Instructions
|
Firmware upgrade instructions
|
MiniTermFirmware Upgrade.pdf (138 KB)
|
KS100 – Mounting Kit
PN: KS100 This mounting kit was designed to affix our Programmable Keypads and Mini Terms with ease to any surface.
Replacement 6 Feet RJ45 to USB Cable
PN: 6RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48. It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 6 feet.
Replacement 6 feet RJ to USB-C Cable
PN: 6RJ-USB-C This USB Cable is compatible with Controlpad models CP24 and CP48. It is a detachable cable with an RJ connection on one end and a USB-C Male connection on the other end. (Example: connect it to a desktop, laptop, tablet, phone with a USB-C connection). Length: 6 feet.
Replacement 12 Feet RJ45 to USB Cable
PN: 12RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48. It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 12 feet.
Replacement 25 Feet RJ45 to USB Cable
PN: 25RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48. It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 25 feet.
Keycap Puller
1×1 Relegendable Keycap
This Single (1×1) Size keycap is designed for all Genovation programmable ControlPad CP24 and CP48 keypads. (Version 2.0 or higher)
1×2 Relegendable Keycap
This Double (1×2) Size keycap is designed for all Genovation programmable ControlPad CP24 and CP48 keypads. (Version 2.0 or higher)
Custom Printed Keycaps
Standard Printed or Double-Shot (Won't Rub Off)
Custom Firmware Programming
Custom Label Branding and Product Packaging
Complete OEM Services
Custom Precut Keycap Label Sheets
Vinyl, Waterproof Made to Order
The Highest Quality Labeling Choice
Low-Cost, typically less than $0.25 per label
Controlpad CP24
.bmp)

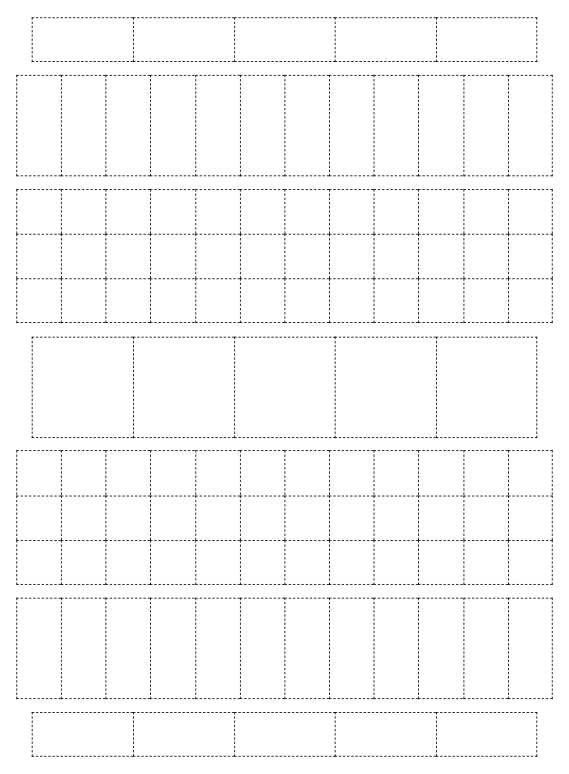

Download the Template BITMAP (BMP) File and Create your own custom keycap layout using your favorite paint application.
