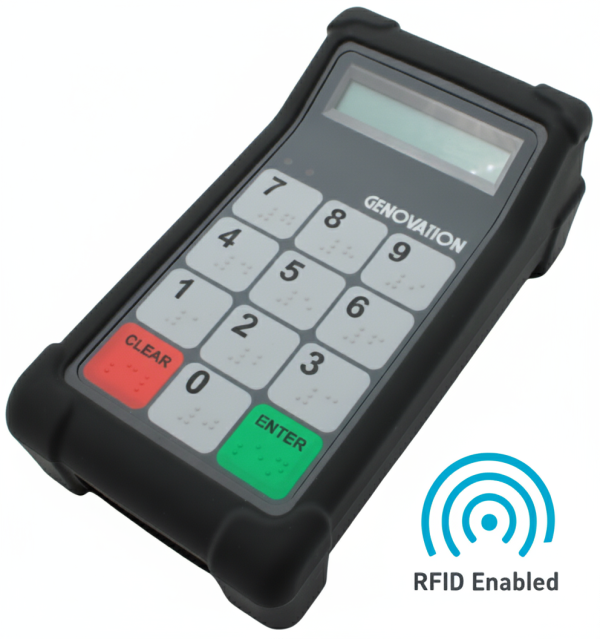

Genovation 909-RFID-R5: Secure, Contactless Keypad for Faster POS Transactions
The 909-RFID-R5 is a new dual-frequency RFID keypad that lets students tap and go—cutting wait times while boosting accuracy. Built for security and speed, it’s the smart choice to streamline your POS process, and make lunch line processing fast, smooth, and more enjoyable for students and staff.
Share:
The 909-RFID-R5 is a compact RFID reader that supports both 125 kHz and 13.56 MHz card formats, including MiFare and HID Prox. It’s ideal for K–12 schools looking to modernize their cafeteria or attendance check-in processes — with no major system overhaul required. Students simply tap their RFID enabled student I.D. card on the Genovation RFID RF5 PIN pad and their student ID# will be transmitted to the POS system. It’s fast, accurate, and reliable.
No complicated setup. No special software. The 909-RFID-R5 outputs each card’s factory-encoded UID (Unique Identifier) as a decimal number, sent via USB as either a keyboard input or a virtual serial ASCII device — ready for use in your current software.
Whether you’re managing a single school cafeteria or overseeing district-wide technology upgrades, the 909-RFID-R5 makes it easy to improve efficiency without disrupting daily operations. Keep your staff focused on service, not scanning issues.
✅ Serve more students in less time
✅ Reduce congestion during peak hours
✅ Improve hygiene with touch-free check-in
✅ Minimize human error and manual entry
Ready to speed up your cafeteria check-in process?
Contact Genovation to request more information, schedule a demo, or talk to a product expert.
Phone: 949–833–3355
Email: Sales@Genovation.com
| Mechanical Data: | |
| Life Cycles | 2 x 107 |
| Key Type | New braille compliant membrane (20,000,000+ operations) |
| Operating Force | 0.686N (79gf) |
| Color | Dark gray |
| Number of Keys | 12 |
| Key Roll-Over | Selectable 1 or 2 key |
| Electrical Data: | |
| LCD Display: | |
| Type | High-Contrast 2×16 Super-Twist “STN” |
| Backlight | Yes (LED) |
| Light Emitting Diodes: | |
| Quantity | 2 |
| Color(s) | 1 Green, 1 Red – Both user programmable |
| Dimensions: | |
| Length x Width x Height | 18.5cm x 8.25cm x 5.3cm (7.25” x 3.5” x 2.25”) |
| Environmental: | |
| Operating Temperature | 0 to 70 degrees C (32 to 158 degrees F) |
| Operating Humidity | 0% to 98% non-condensing |
| FCC Rating | Class B Device |
| Weight: | |
| Keypad (no options) | 0.3kg (0.65lbs) |
| Single Keypad Ship Weight | 1.0kg (2.0lbs) |
| Interface: USB | |
| Type | USB 1.0, 1.1 & 2.0 compliant, bus powered |
| Cable Length | Included 6ft (1.8m), detachable via RJ-45 connection Optional 25ft (7.6m) cable available |
| Connection | RJ-45 to USB standard Type A |
| Data Rate | USB Full Speed |
| Internal Reader Options: | |
| Barcode Scanner “S” Option = 1D (linear only) | NA |
| Barcode Scanner “QR” Option = 2D (linear and QR) | NA |
| RFID Card/Label/Tag Reader | Genovation RF5 dual-frequency (125kHz / 13.56MHz) RFID reader option for all MiniTerm pinpad products. Decodes a wide variety of RFID technologies including factory default UID serial numbers. Outputs UID as USB keyboard or USB virtual serial ASCII device, with decimal value format for host application identification. Features: Supported RFID Formats: |
| Proximity Card | Use your existing access control card or tag for cafeterias, attendance, equipment check-out, etc. This is a custom order since we need to match our keypad to your proximity card (Eg. HID, Indala, etc). |
| Popular Accessories | ||
 |
 |
 |
| USB Cable 6ft RJ45 to USB Type A | USB Cable 6ft RJ45 to USB Type C | Keypad Stand |
|
File Type
|
OS Supported
|
File(s)
|
File Name
|
|---|---|---|---|
|
Software v9
|
Windows 2K/XP, Vista, 7, 8, 10, 11 (March 2016)
|
MiniTermProSetup_v9_setup.exe (6 MB)
|
|
|
Release Notes
|
n/a
|
MiniTermPro.txt (4 KB)
|
|
Manual
|
File(s)
|
File Type
|
|---|---|---|
|
MiniTerm Quick Set-up Guide
|
PDF File
|
|
|
MiniTerm User/Developer Manual (May 2011, 1MB)
|
PDF File
|
|
|
MiniTerm HID Keyboard Setup Brief (Configuring MiniTerm as MiniTerm-K)
|
PDF File
|
|
|
MacroMaster Advanced Mode Manual (Oct. 2009, 1MB)
|
PDF File
|
|
|
MiniTerm Low-Level USB Application Note
|
PDF File
|
|
|
MiniTerm Low-Level USB Application Note Files
|
RAR Archive
|
|
|
Sharp ECR Application Note Using a MiniTerm with a Sharp Electronic Cash Register
|
PDF File
|
|
|
Using the MiniTerm as a Serial LCD (including LCD Smartie)
|
PDF File
|
|
|
Genovation LCD Smartie display plug-in
|
ZIP Archive
|
|
Description
|
Comment
|
File(s)
|
File Type
|
|---|---|---|---|
|
Firmware v5.60 (May 2011)
|
» Upgrade using RS232 cable!
» See "Release Notes" above. » Use browser Save As... |
Call!
|
MiniTerm_upg_v5_60.upg (59 KB)
|
|
Firmware v6.10 (Dec 2011)
|
» Upgrade using RS232 cable!
» See "Release Notes" above. » Use browser Save As... |
Call!
|
MiniTerm_upg_v6_10.upg (59 KB)
|
|
Instructions
|
Firmware upgrade instructions
|
MiniTermFirmware Upgrade.pdf (138 KB)
|
KS100 – Mounting Kit
PN: KS100 This mounting kit was designed to affix our Programmable Keypads and Mini Terms with ease to any surface.
Replacement 6 Feet RJ45 to USB Cable
PN: 6RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48. It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 6 feet.
Replacement 6 feet RJ to USB-C Cable
PN: 6RJ-USB-C This USB Cable is compatible with Controlpad models CP24 and CP48. It is a detachable cable with an RJ connection on one end and a USB-C Male connection on the other end. (Example: connect it to a desktop, laptop, tablet, phone with a USB-C connection). Length: 6 feet.
Replacement 12 Feet RJ45 to USB Cable
PN: 12RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48. It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 12 feet.
Replacement 25 Feet RJ45 to USB Cable
PN: 25RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48. It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 25 feet.
Keycap Puller
1×1 Relegendable Keycap
This Single (1×1) Size keycap is designed for all Genovation programmable ControlPad CP24 and CP48 keypads. (Version 2.0 or higher)
1×2 Relegendable Keycap
This Double (1×2) Size keycap is designed for all Genovation programmable ControlPad CP24 and CP48 keypads. (Version 2.0 or higher)
Custom keycaps are compatible with Genovation mechanical keypads and keyboards (Cherry MX style stem).
Contact Sales
to discuss either
of these options.
Contact
A quote form is available
at bottom of page.
Custom labels are compatible with Genovation’s relegendable keycaps. They are easy to apply, and fit underneath the clear lens of the keycap.
“Why Choose Custom Keycaps”
Custom keycaps offer several benefits:
Highest Durability:
High-quality custom keycaps are designed to withstand heavy use, ensuring long-lasting performance and maintaining their appearance even with frequent typing.
Improved Usability:
Custom keycaps can help improve typing efficiency by clearly marking functions, shortcuts, or special characters on a keyboard, enhancing the user experience.
Enhanced Comfort and Functionality:
With premium materials and various sizes available,custom keycaps can improve typing comfort and enhance functionality and ergonomics.
Premium Aesthetic Appeal:
Custom keycaps add a premium, personalized look to any keyboard,
making it a perfect choice for users seeking a unique and stylish setup.
“Why Choose Vinyl Labels”
Custom vinyl keycap labels offer several benefits:
Cost-Effective:
Compared to fully custom keycaps,
vinyl labels are an affordable way to personalize keyboards.
Quick Turnaround:
Vinyl labels can be easily produced and applied,
allowing for fast fulfillment of customer orders.
Durability:
High-quality vinyl labels are resistant to wear and tear,
ensuring that customizations remain visible for an extended period, even with heavy use.
Improved Usability:
Labels can help improve typing efficiency by clearly marking functions,
shortcuts, or special characters on a keyboard, enhancing the user experience.
