ControlPad CP48 USB Virtual Serial

Overview

The ControlPad CP48-USB Virtual Serial is versatile, 48-key programmable USB Serial ASCII keypad.

This allows your application to open and connect to this COM port to communicate with the ControlPad CP48-USB Virtual Serial Keypad
Your custom macro key definitions are stored within the CP48-USB Virtual Serial’s internal FLASH memory allowing it to operate as a stand-alone serial ASCII keyboard.


Now shipping with 3 Double Keys 3 Extra Single Keys and a Keycap Puller. Additional Key Caps can be purchased here.

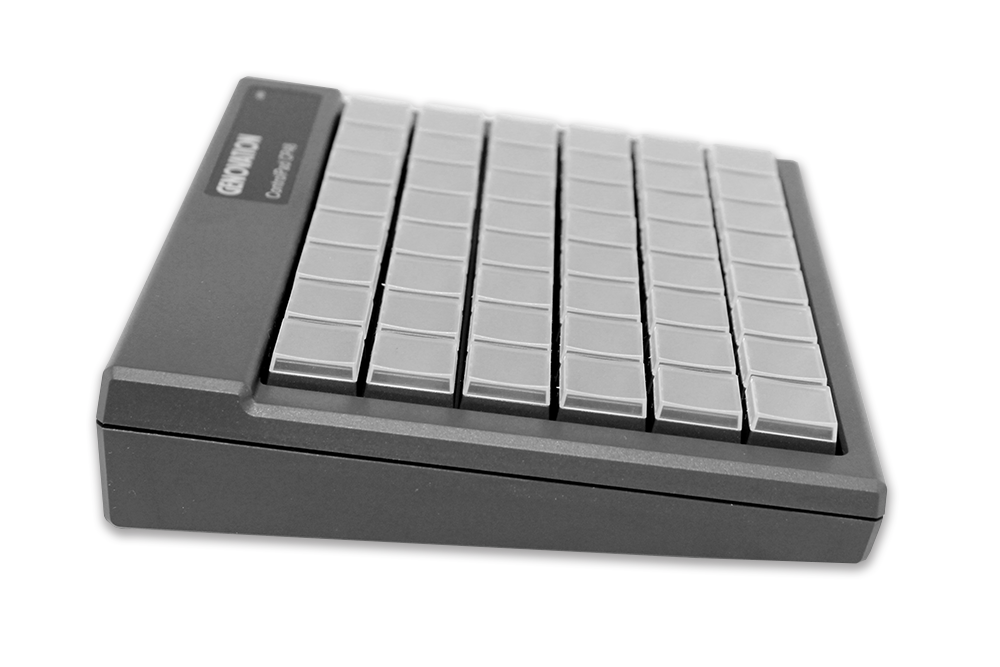

The ControlPad CP48-USBVirtualSerial is a versatile, 48-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The non-volatile, programmable memory allows the keypad to connect to any USB port without installing resident software. The keypad is easy to program using the Windows compatible software provided. Assembled with high quality Cherry MX2A keys witches, the keys are durable, yet light and easy to press — a feature lacking on lesser quality keypads.

  • 48 fully programmable keys with relegendable keycaps
  • 3 double keys, 3 extra single keys, and a keycap puller included
  • 6′ Detachable USB cable with Type A plug included
  • Heavy duty metal frame design for industrial and commercial applications
  • 2-level programmable, equivalent to 96 keys
  • Includes Three Programmable LED Indicator Lights (top right)
  • Accepts ALL ASCII code values including extended ASCII codes
  • Optional protective latex covers available
  • Low power consumption
  • Uses the highest quality Cherry MX2A key switches rated at 100 million operations
  • 1-year warranty



For more information on customizing your own keypad, please see PDF brochure or call us 949-833-3355.

  • Detachable USB cable is 1.8m (6 ft) long
  • Consumes less than 30mA
  • Power supplied by USB port
  • Complies with FCC Class B standards
  • CE Approved

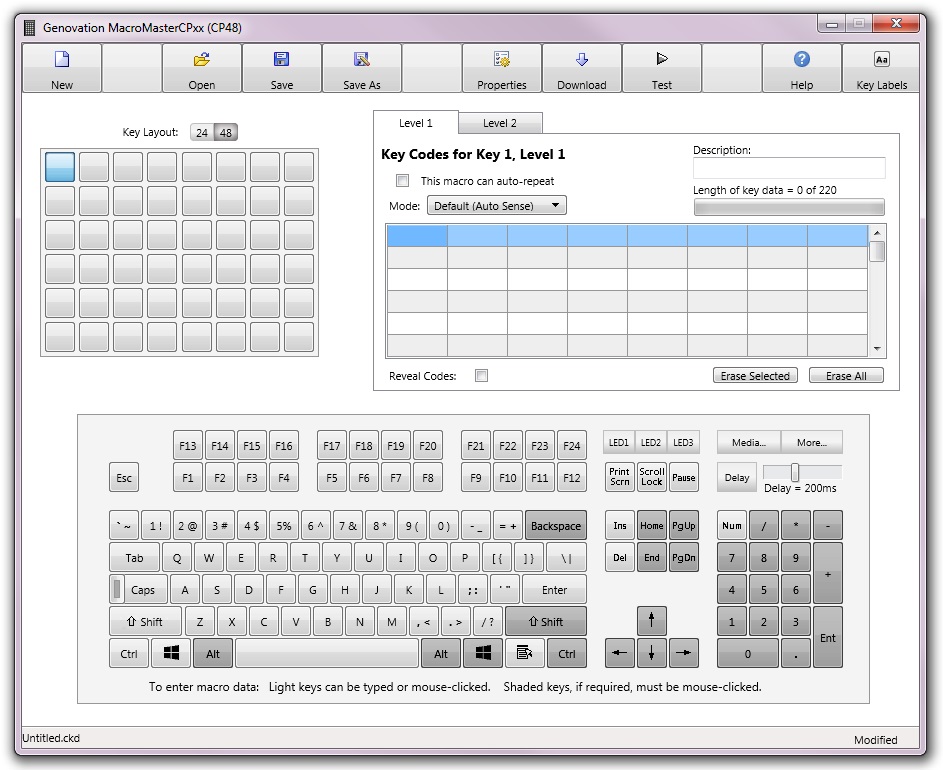

  • Includes easy to use redefinition programming software (MacroMasterCPSxx.exe)
  • Uses Cherry MX2A gold plated industrial quality mechanical key switches
  • Key life: 1 x 108 cycles (100 Million Operations)
  • Silent soft touch momentary contact switches
  • Temperature range is 0 to 70C (32 to 158F)
  • Weight of keypad alone is 0.44 kg (1 lb 3 Oz)
  • Keypad with single ship pack is 0.9 kg (2 lb)
  • EEPROM is non-volatile, >100 year retention
  • Relative humidity: 0% to 98%
  • Will boot PC standalone in USB mode
File Type
OS Supported
File(s)
File Name
MacroMasterCPxx Software (May 2019) USB
Windows XP & Newer
MacroMasterCPSxx_Setup_v1_00.exe USB (6.3MB)
Release Notes (Sep '14)
MacroMasterCPSxx.txt (2 KB)
Manual
File(s)
File Type
ControlPad CP48-USB Quick Start
PDF Files (300KB)
ControlPad CP48-USB User Manual (Aug 2014)
PDF Files (2MB)

* The Multimedia USB keys are:

  • Transport Control -- next track, previous track, stop, play/pause
  • Audio -- mute, volume up, volume down
  • Apps -- media select (media player), e-mail, app 1 (calculator), app 2 (my computer)
  • Web/WWW -- search, home, back, forward, stop, refresh, favorites
  • Misc -- eject (Mac only, Windows doesn't appear to support this yet)

KS100 – Mounting Kit

PN: KS100 This mounting kit was designed to affix our Programmable Keypads and Mini Terms with ease to any surface.

Replacement 6 Feet RJ45 to USB Cable

PN: 6RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48.  It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 6 feet.

Replacement 6 feet RJ to USB-C Cable

PN: 6RJ-USB-C This USB Cable is compatible with Controlpad models CP24 and CP48.  It is a detachable cable with an RJ connection on one end and a USB-C Male connection on the other end. (Example: connect it to a desktop, laptop, tablet, phone with a USB-C connection). Length: 6 feet.

12' USB Cable with male RJ-45 plug for MiniTerm 9xx series (ver 4+)

Replacement 12 Feet RJ45 to USB Cable

PN: 12RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48.  It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 12 feet.

25' USB Cable with male RJ-45 plug for MiniTerm 9xx series (ver 4+)

Replacement 25 Feet RJ45 to USB Cable

PN: 25RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48.  It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 25 feet.

Controlpad CP24 CP48 keycap pullers

Keycap Puller

These keycap pullers are designed to pull keycaps off of Cherry MX key switches.

1×1 Relegendable Keycap

This Single (1×1) Size keycap is designed for all Genovation  programmable ControlPad CP24 and CP48 keypads. (Version 2.0 or higher)

1×2 Relegendable Keycap

This Double (1×2) Size keycap is designed for all Genovation  programmable ControlPad CP24 and CP48 keypads. (Version 2.0 or higher)

Custom Printed Keycaps

Standard Printed or Double-Shot (Won't Rub Off)

Custom Firmware Programming

Custom Label Branding and Product Packaging

Complete OEM Services

Genovation Controlpad CP24 programmable keypad custom keycaps emergency 911 pasp e911 ems

Custom Precut Keycap Label Sheets

Vinyl, Waterproof Made to Order

The Highest Quality Labeling Choice

Low-Cost, typically less than $0.25 per label

Custom Labels Controlpad CP24 CP48 Pre-Printed label template programmable keypad DOWNLOAD

Controlpad CP24

Download the Template BITMAP (BMP) File and Create your own custom keycap layout using your favorite paint application.

Custom Labels Controlpad CP24 CP48 Pre-Printed label template programmable keypad
Custom Labels Controlpad CP24 CP48 Pre-Printed label template programmable keypad submit
