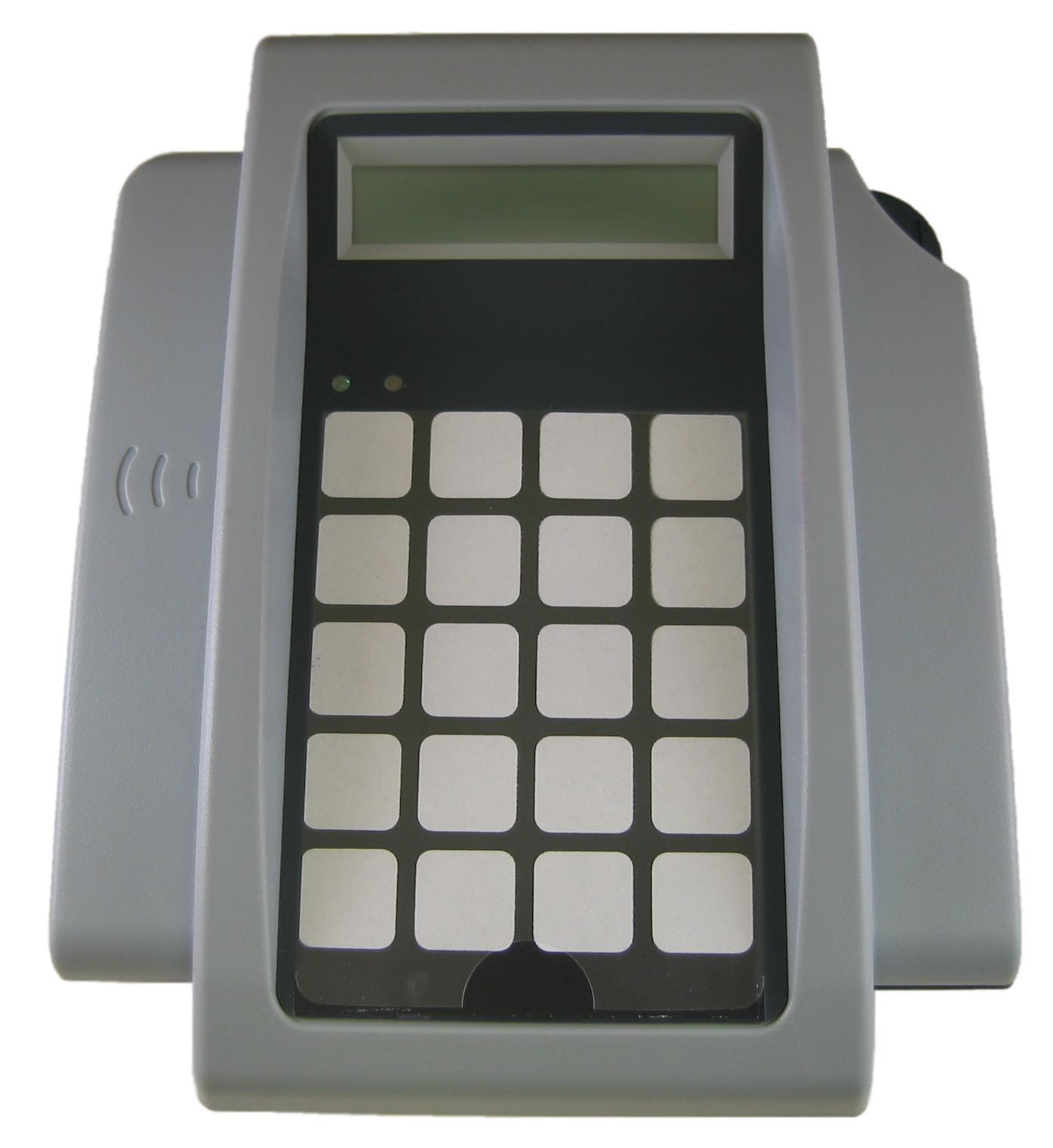

MiniTerm 907 20-Key Relegendable Fully Programmable Mini-Terminal / LCD Pinpad Multiple host and card reader options |
||||||||||||
|
|
|||||||||||
|
|
|||||||||||
|
|
||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| Supported Operating Systems and Hosts | ||||||||||||||||||
|
||||||||||||||||||
| Specifications | |
| Mechanical Data: | |
| Life Cycles | 2 x 107 |
| Key Type | Tactile sealed membrane (20,000,000+ operations) |
| Operating Force | 0.686N (79gf) |
| Color | Two tone, light and dark gray |
| Number of Keys | 20 |
| Electrical Data: | |
| Power Supply |
5vDC, 60ma (not including card reader). RS232 adapter supplied, USB bus powered. |
| Key Roll-Over | Selectable 1 or 2 key |
| Memory | FLASH+EEPROM non-volatile, >100 year retention |
| LCD Display: | |
| Type | 2x16 Super-Twist STN |
| Backlight | Yes (LED) |
| Light Emitting Diodes: | |
| Quantity | 2 |
| Color(s) | 1 Green, 1 Red - Both user programmable |
| Dimensions: | |
| Length x Width x Height | 18.5cm x 15.0cm x 5.3cm (7.25 x 6.0 x 2.25) |
| Environmental: | |
| Operating Temperature | 0 to 70 degrees C (32 to 158 degrees F) |
| Operating Humidity | 0% to 98% non-condensing |
| FCC Rating | Class B Device |
| Weight: | |
| Keypad (no options) | 0.3kg (0.65lbs) |
| Single Keypad Ship Weight | 1.0kg (2.0lbs) |
| Interface: RS232 | |
| Type | Serial RS232C compliant |
| Cable Length |
Included 6ft (1.8m), detachable via RJ-45 connection Optional 25ft (7.6m) cable available |
| Connection | RJ-45 to DB-9 female |
| Data Rate | 1200 to 115.2k baud, full duplex |
| Interface: USB | |
| Type | USB 1.0, 1.1 & 2.0 compliant, bus powered |
| Cable Length |
Included 6ft (1.8m), detachable via RJ-45 connection Optional 25ft (7.6m) cable available |
| Connection | RJ-45 to USB standard Type A |
| Data Rate | USB Full Speed |
| Interface: Ethernet | |
| Type | 10Base-T/100Base-TX (Auto-Sensing) |
| Cable Length | Not included |
| Connection | RJ-45 |
| Protocols | TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP |
| Internal Reader Options: | |
| Barcode Card/Tag/Label Scanner | Front firing, visible red beam |
| Slotted Barcode Card Reader | Infrared swipe reader for Barcode ID cards, located on right hand side |
| Magnetic Card Reader | Mag card swipe reader for ATM, driver's license, credit cards, etc. Located on right hand side. |
| RFID Card/Label/Tag Reader | 125kHz or 13.56MHz MiFARE MF1/Ultralight cards, labels and tags. Located on left hand side. |
| Fingerprint ID Reader | Scans and encodes fingerprints into usable biometric data |
| RS232 Ext. Wedge Device | Rear panel RJ45 input jack allows external RS232 serial device wedging/pass-thru |
| Popular Accessories | |
|
|
| RS-232 Serial Cable | USB Cable |
| Driver / Software | |||
| File Type | OS Supported | File(s) | File Name |
|
Software (Oct 2007) |
Windows 2K/XP, Vista (32-bit) | Download Now |
MiniTermProSetup_v4_10.exe (3 MB) |
|
Software (May 2008) |
Windows 2K/XP, Vista (32-bit) | Download Now |
MiniTermProSetup_v5_00.exe (4 MB) |
| User and Developer Resources | |||
| Manuals | File(s) | File Type | |
| MiniTerm Quick Set-up Guide | Download Now | PDF File | |
| MiniTerm User/Developer Manual | Download Now | PDF File | |
|
MiniTerm HID Keyboard Setup Brief (Configuring MiniTerm as MiniTerm-K) |
Download Now | PDF File | |
| MiniTerm Low-Level Application Note | Download Now | PDF File | |
| MiniTerm Low-Level Application Note Files | Download Now | RAR Archive | |
|
Using the MiniTerm as a Serial LCD (including LCD Smartie) |
Download Now | PDF File | |
| Genovation LCD Smartie display plug-in | Download Now | ZIP Archive | |
| Protect your software! Request a copy of our Genovation Keypad as Software Copy Protection white paper. | Request Now | PDF Request | |
| Ordering Information: 907 Part Number Builder | |
|
Select the host port type: Select the optional reader type: |
|
|
