Genovation 905-RFID-R5: Secure, Contactless Keypad for Faster POS Transactions
The 905-RFID-R5 is a new dual-frequency RFID keypad that lets students tap and go—cutting wait times while boosting accuracy. Built for security and speed, it’s the smart choice to streamline your POS process, and make lunch line processing fast, smooth, and more enjoyable for students and staff.
Share:

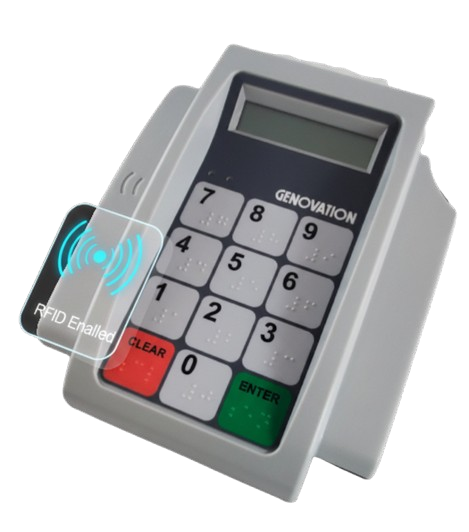

The 905-RFID-R5 is a compact RFID reader that supports both 125 kHz and 13.56 MHz card formats, including MiFare and HID Prox. It’s ideal for K–12 schools looking to modernize their cafeteria or attendance check-in processes — with no major system overhaul required. Students simply tap their RFID enabled student I.D. card on the Genovation RFID RF5 PIN pad and their student ID# will be transmitted to the POS system. It’s fast, accurate, and reliable.
Dual-frequency support for broad compatibility (125 kHz + 13.56 MHz)
Works with popular formats like MiFare and HID Prox
Tap-and-go convenience — Faster than scanning or manual input
Faster throughput during peak times
Contactless check-in for better hygiene
Seamless integration Works with your software, just like your other PIN pads
No complicated setup. No special software. The 905-RFID-R5 outputs each card’s factory-encoded UID (Unique Identifier) as a decimal number, sent via USB as either a keyboard input or a virtual serial ASCII device — ready for use in your current software.
Integration Highlights:
Plug-and-play with Genovation MiniTerm pin pads
USB output: keyboard or serial ASCII
HID card support: configure to show card ID only, or card ID + facility code
Works out-of-the-box with most cafeteria and attendance systems
Whether you’re managing a single school cafeteria or overseeing district-wide technology upgrades, the 905-RFID-R5 makes it easy to improve efficiency without disrupting daily operations. Keep your staff focused on service, not scanning issues.
✅ Serve more students in less time
✅ Reduce congestion during peak hours
✅ Improve hygiene with touch-free check-in
✅ Minimize human error and manual entry
Ready to speed up your cafeteria check-in process?
Contact Genovation to request more information, or reseller partner referals.
Phone: 949–833–3355
Email | Sales@Genovation.com
| Mechanical Data: | |
| Life Cycles | 2 x 107 |
| Key Type | New braille membrane (20,000,000+ operations) |
| Operating Force | 0.686N (79gf) |
| Color | Two tone, light and dark gray |
| Number of Keys | 12 |
| Electrical Data: | |
| Power Supply | 5vDC, 60ma (not including card reader). RS232 adapter supplied, USB bus powered. |
| Key Roll-Over | Selectable 1 or 2 key |
| Memory | FLASH+EEPROM non-volatile, >100 year retention |
| LCD Display: | |
| Type | 2×16 Super-Twist “STN” |
| Backlight | Yes (LED) |
| Light Emitting Diodes: | |
| Quantity | 2 |
| Color(s) | 1 Green, 1 Red – Both user programmable |
| Dimensions: | |
| Length x Width x Height | 18.5cm x 15.0cm x 5.3cm (7.25” x 6.0” x 2.25”) |
| Environmental: | |
| Operating Temperature | 0 to 70 degrees C (32 to 158 degrees F) |
| Operating Humidity | 0% to 98% non-condensing |
| FCC Rating | Class B Device |
| Weight: | |
| Keypad (no options) | 0.3kg (0.65lbs) |
| Single Keypad Ship Weight | 1.0kg (2.0lbs) |
| Interface: RS232 | |
| Type | Serial RS232C compliant |
| Cable Length | Included 6ft (1.8m), detachable via RJ-45 connection Optional 25ft (7.6m) cable available |
| Connection | RJ-45 to DB-9 female |
| Data Rate | 1200, 2400, 4800, 9600, 19200, 31250 (MIDI), 38400, 57600 and 115200 baud, full duplex |
| Interface: USB | |
| Type | USB 1.0, 1.1 & 2.0 compliant, bus powered |
| Cable Length | Included 6ft (1.8m), detachable via RJ-45 connection Optional 25ft (7.6m) cable available |
| Connection | RJ-45 to USB standard Type A |
| Data Rate | USB Full Speed |
| Interface: Ethernet | |
| Type | 10Base-T/100Base-TX (Auto-Sensing) |
| Cable Length | Not included |
| Connection | RJ-45 |
| Protocols | TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP |
| Internal Reader Options: | |
| Barcode Card/Tag/Label Scanner | NA |
| Slotted Barcode Card Reader | NA |
| Magnetic Card Reader | NA |
| RFID Card/Label/Tag Reader |
Genovation RF5 dual-frequency (125kHz / 13.56MHz) RFID reader option for all MiniTerm pinpad products. Decodes a wide variety of RFID technologies including factory default UID serial numbers. Outputs UID as USB keyboard or USB virtual serial ASCII device, with decimal value format for host application identification. Features: Supported RFID Formats: |
| RS232 Ext. Wedge Device | Rear panel RJ45 input jack allows external RS232 serial device wedging/pass-thru |
| Dallas One-Wire iButton | Front panel mounted “probe” receptacle. Guaranteed unique 64-bit registration number per tag. |
| Proximity Card | Use your existing access control card or tag for cafeterias, attendance, equipment check-out, etc. This is a custom order since we need to match our keypad to your proximity card (Eg. HID, Indala, etc). |
| Popular Accessories | ||
 |
 |
 |
| RS-232 Serial Cable | USB Cable | RFID Cards |
|
File Type
|
OS Supported
|
File(s)
|
File Name
|
|---|---|---|---|
|
Software v9
|
Windows 2K/XP, Vista, 7, 8, 10, 11 (March 2016)
|
MiniTermProSetup_v9_setup.exe (6 MB)
|
|
|
Release Notes
|
n/a
|
MiniTermPro.txt (4 KB)
|
|
Manual
|
File(s)
|
File Type
|
|---|---|---|
|
MiniTerm Quick Set-up Guide
|
PDF File
|
|
|
MiniTerm User/Developer Manual (May 2011, 1MB)
|
PDF File
|
|
|
MiniTerm HID Keyboard Setup Brief (Configuring MiniTerm as MiniTerm-K)
|
PDF File
|
|
|
MacroMaster Advanced Mode Manual (Oct. 2009, 1MB)
|
PDF File
|
|
|
MiniTerm Low-Level USB Application Note
|
PDF File
|
|
|
MiniTerm Low-Level USB Application Note Files
|
RAR Archive
|
|
|
Sharp ECR Application Note Using a MiniTerm with a Sharp Electronic Cash Register
|
PDF File
|
|
|
Using the MiniTerm as a Serial LCD (including LCD Smartie)
|
PDF File
|
|
|
Genovation LCD Smartie display plug-in
|
ZIP Archive
|
|
Description
|
Comment
|
File(s)
|
File Type
|
|---|---|---|---|
|
Firmware v5.60 (May 2011)
|
» Upgrade using RS232 cable!
» See "Release Notes" above. » Use browser Save As... |
Call!
|
MiniTerm_upg_v5_60.upg (59 KB)
|
|
Firmware v6.10 (Dec 2011)
|
» Upgrade using RS232 cable!
» See "Release Notes" above. » Use browser Save As... |
Call!
|
MiniTerm_upg_v6_10.upg (59 KB)
|
|
Instructions
|
Firmware upgrade instructions
|
MiniTermFirmware Upgrade.pdf (138 KB)
|
