ControlPad CP48 USB HID

Overview

Now with Cherry MX2A Mechanical Key Switches!
Rated for 100 Million Actuations.
That’s 2x More Than Previous Version!

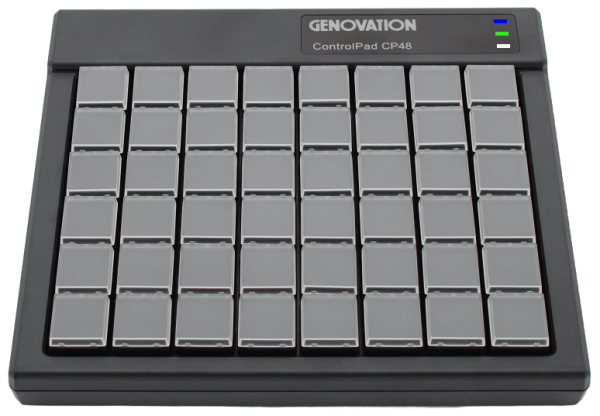

The ControlPad CP48-USBHID is a versatile, 48-key programmable USB Multimedia keyboard.
Your custom macro key definitions are stored within the CP48-USBHID’s internal FLASH memory making it a true “PLUG and PLAY” programmable USB keyboard.



Video Link

Application

  • Great for any repetitive keystrokes and text.
  • Universal programming on Windows, Apple MacOS, and Linux operating systems.
  • Saves all your hot-keys and shortcuts.
  • Increases speed and productivity while reducing typos.
  • Adds speed and fun to gaming.
  • Useful for CAD, multimedia, online trading or any other advanced software.
  • One touch control of email, password and login info.
  • Heavy duty metal frame design for industrial and commercial applications.



Now shipping with 3 Double Keys 3 Extra Single Keys and a Keycap Puller. Additional Key Caps can be purchased here.

The ControlPad CP48-USBHID is versatile, 48-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The non-volatile, programmable memory allows the keypad to connect to any USB port without installing resident software. The keypad is easy to program using Windows compatible software provided or with our NEW Web Browser APP. Assembled with high quality Cherry MX2A key switches, the keys are durable, yet light and easy to press — a feature lacking on lesser quality keypads.

  • 48 fully programmable keys with relegendable keycaps
  • Now Compatible with Windows, Apple MacOS, and Linux Operating Systems using our Web Browser Programming APP
  • Includes Advanced Windows Programming Application

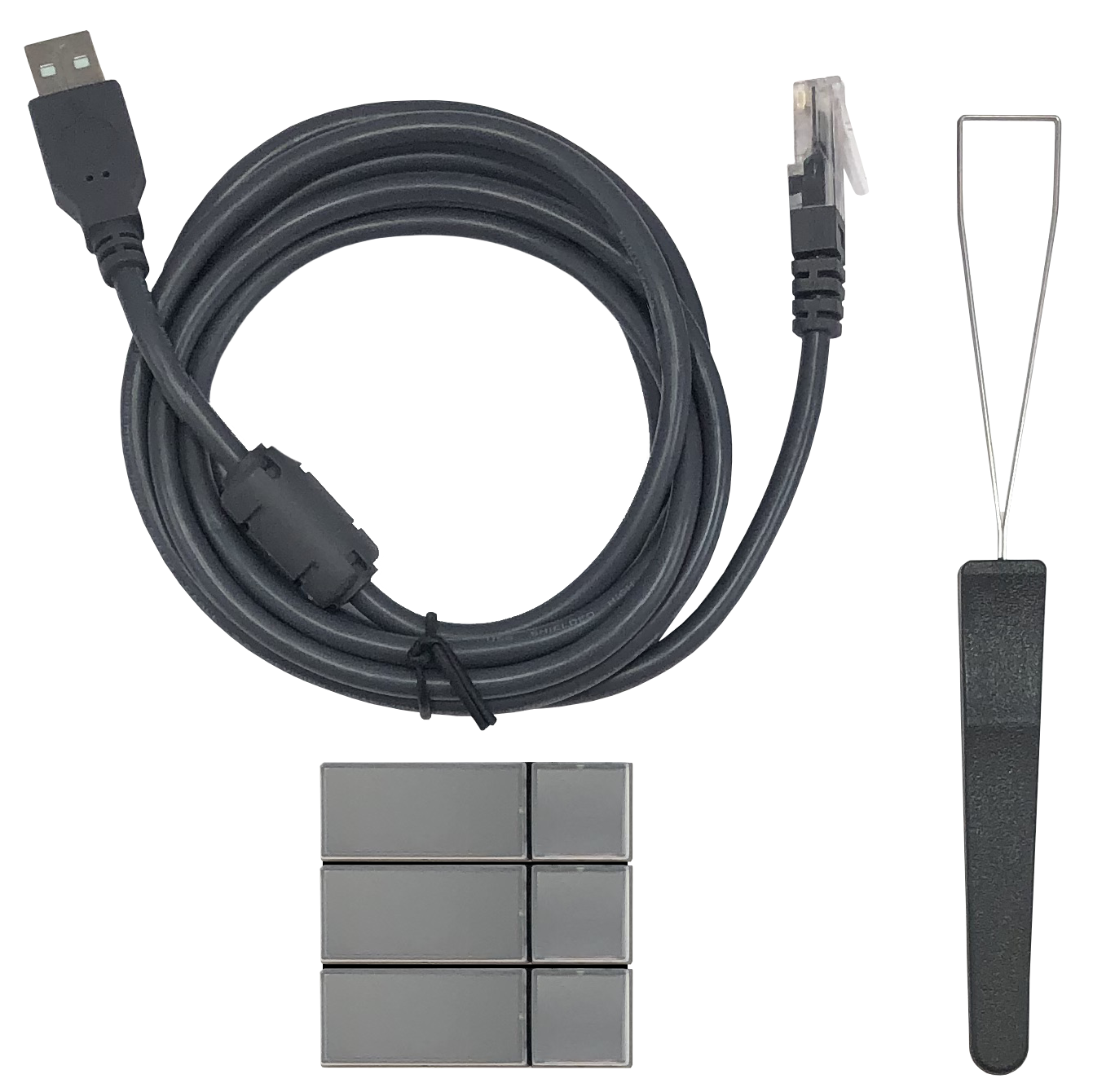

  • 3 double keys, 3 extra single keys, and a keycap puller included
  • 6′ Detachable USB cable with Type A plug included
  • Cable feature: “Yank-proof”
  • 2-level programmable, equivalent to 96 keys
  • Includes Three Programmable LED Indicator Lights (top right)
  • Supports USB Multimedia keys * and USB Mouse Functions
  • Supports F1 through F24
  • Optional protective latex covers available
  • Low power consumption
  • Uses the highest quality Cherry MX2A key switches rated at 100 million operations
  • 1-year warranty



*Custom Inquiries, call us 949-833-3355 or E-mail.

*Ask us about custom Din Rail mounting options. E-mail.

  • Detachable USB cable is 1.8m (6 ft) long
  • Consumes less than 30mA
  • Power supplied by USB port
  • Complies with FCC Class B standards
  • CE Approved
  • Includes easy to use redefinition programming software (MacroMasterCPxx.exe)
  • Now Programs on Windows, Apple MacOS, and Linux Operating Systems with our Web Browser APP
  • Program macros to operate with USB keyboard or USB Mouse Controls
  • Software driver not required for operation
  • Uses Cherry MX2A gold plated industrial quality mechanical key switches
  • Key life: 1 x 108 cycles (100 Million Operations)
  • Silent soft touch momentary contact switches
  • Temperature range is 0 to 70C (32 to 158F)
  • Weight of keypad alone is 0.44 kg (1 lb 3 Oz)
  • Keypad with single ship pack is 0.9 kg (2 lb)
  • EEPROM is non-volatile, >100 year retention.
  • Relative humidity: 0% to 98%
  • Will boot PC standalone in USB Keyboard mode
File Type
OS Supported
File(s)
File Name
MacroMasterCPxx Software (v2.00a) USB
Windows Operating Systems
(XP & Newer)
MacroMasterCPxx_Setup_v2_00a.exe (8.6MB)
Backward compatible with all CPxx firmware and hardware. (v1.0 to v4.1+)
Run "CPxxLoad.exe" & Click "Options"
Select the Version Number of your Keypad
or Use "Auto-Detect" to find your Keypad
Universal MacroMasterCPxx Web APP
Program your Controlpad from a Web Browser using any Operating System
Windows, Apple MacOS, Linux
Use Chrome Web Browser for the Best Results
Contact Technical Support for Firmware
Questions or Upgrade Information to (v4.1)
Web Browser Application
Compatible with Controlpad CPxx
(v4.1 or Higher)
Manual
File(s)
File Type
ControlPad CPxx-USB Quick Start (v4.1+)
PDF Files (300KB)
ControlPad CPxx-USB User Manual 2.00a
PDF Files (3MB)
Description
File(s)
File Type
Keycap Template (v2.0 and Higher)
Bitmap Image File (.bmp)
Description
File(s)
File Type
Keycap Template (v2.0 and Higher)
Microsoft DOC File (.doc)
Description
File(s)
File Type
Keycap Template (v2.0 and Higher)
Microsoft Excel File (.xls)

KS100 – Mounting Kit

PN: KS100 This mounting kit was designed to affix our Programmable Keypads and Mini Terms with ease to any surface.

Replacement 6 Feet RJ45 to USB Cable

PN: 6RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48.  It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 6 feet.

Replacement 6 feet RJ to USB-C Cable

PN: 6RJ-USB-C This USB Cable is compatible with Controlpad models CP24 and CP48.  It is a detachable cable with an RJ connection on one end and a USB-C Male connection on the other end. (Example: connect it to a desktop, laptop, tablet, phone with a USB-C connection). Length: 6 feet.

12' USB Cable with male RJ-45 plug for MiniTerm 9xx series (ver 4+)

Replacement 12 Feet RJ45 to USB Cable

PN: 12RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48.  It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 12 feet.

25' USB Cable with male RJ-45 plug for MiniTerm 9xx series (ver 4+)

Replacement 25 Feet RJ45 to USB Cable

PN: 25RJ-USB This USB Cable is compatible with Controlpad models CP24 and CP48.  It is a detachable cable with an RJ connection on one end and a USB-A Male connection on the other end. Length: 25 feet.

Controlpad CP24 CP48 keycap pullers

Keycap Puller

These keycap pullers are designed to pull keycaps off of Cherry MX key switches.

1×1 Relegendable Keycap

This Single (1×1) Size keycap is designed for all Genovation  programmable ControlPad CP24 and CP48 keypads. (Version 2.0 or higher)

1×2 Relegendable Keycap

This Double (1×2) Size keycap is designed for all Genovation  programmable ControlPad CP24 and CP48 keypads. (Version 2.0 or higher)

Custom Printed Keycaps

Standard Printed or Double-Shot (Won't Rub Off)

Custom Firmware Programming

Custom Label Branding and Product Packaging

Complete OEM Services

Genovation Controlpad CP24 programmable keypad custom keycaps emergency 911 pasp e911 ems

Custom Precut Keycap Label Sheets

Vinyl, Waterproof Made to Order

The Highest Quality Labeling Choice

Low-Cost, typically less than $0.25 per label

Custom Labels Controlpad CP24 CP48 Pre-Printed label template programmable keypad DOWNLOAD

Controlpad CP24

Download the Template BITMAP (BMP) File and Create your own custom keycap layout using your favorite paint application.

Custom Labels Controlpad CP24 CP48 Pre-Printed label template programmable keypad
Custom Labels Controlpad CP24 CP48 Pre-Printed label template programmable keypad submit
