ControlPad CP24 DB9 Serial

ControlPad CP24 DB9 Serial

Email to a Friend

Quick Overview

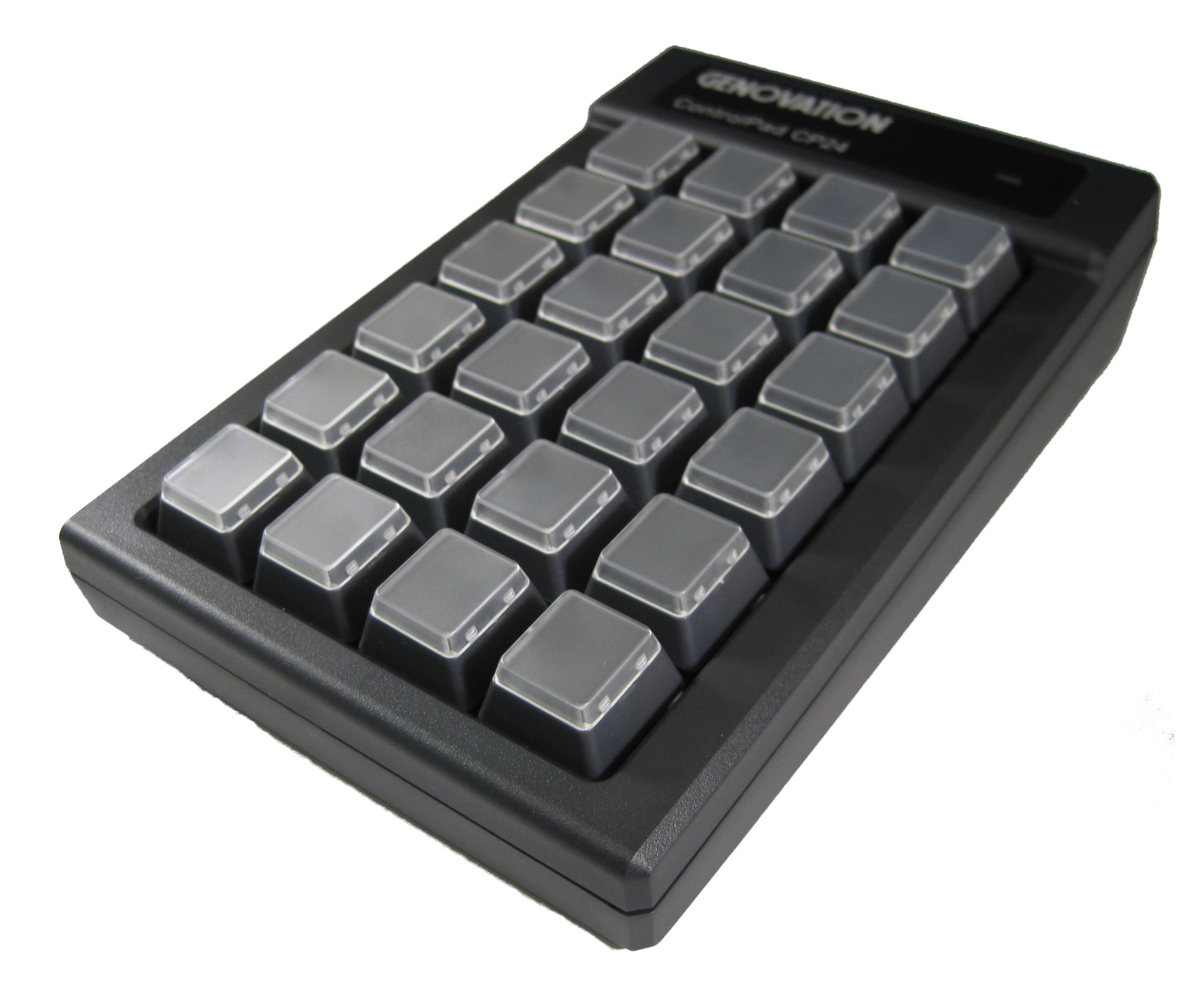

The ControlPad CP24-DB9Serial is versatile, 24-key programmable Serial RS232C compatible keyboard.

Your custom macro key definitions are stored within the CP24-DB9 Serial’s internal FLASH memory making it a stand-alone serial ASCII RS232C keyboard.

The Controlpad CP24-DB9 Serial connects to any standard RS232C compatible
serial port and operates without the need of a driver.

Additional Information

Description

Now shipping with 3 Double Keys, 3 Single Keys, and a Keycap Puller. Additional Key Caps can be purchased here.

The CP24-DB9 Serial is versatile, 24-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The non-volatile, programmable memory allows the keypad to connect to any USB port without installing resident software. The keypad is easy to program using the Windows compatible software provided. Assembled with high quality Cherry MX keyswitches, the keys are durable, yet light and easy to press — a feature lacking on lesser quality keypads.

  • 24 fully programmable keys with relegendable keycaps
  • 3 double keys, 3 extra single keys, and a keycap puller included
  • 6′ RS232 DB9 cable with Type A plug
  • External Power Supply
  • 2-level programmable, equivalent to 48 keys
  • Programmable LED Indicator Light (top right)
  • Supports USB MultiMedia keys *
  • Supports F1 through F24
  • Optional protective latex covers available
  • Low power consumption
  • Uses the highest quality key switches rated at 50 million operations
  • 1-year warranty



For more information on customizing your own keypad, call us 949-833-3355.

Type

Universal, 24-key, fully-programmable

Interface

DB9 Serial

Keys

24

Color

Black

Dimensions

6″ x 3.95″ x 1.5″

Weight

1.0000

OS Supported

Programming software requires Windows OS: – Windows XP & Newer. Once programmed, operates on any OS and any PC with USB: – Windows / Mac OS / Linux / DOS

Specifications

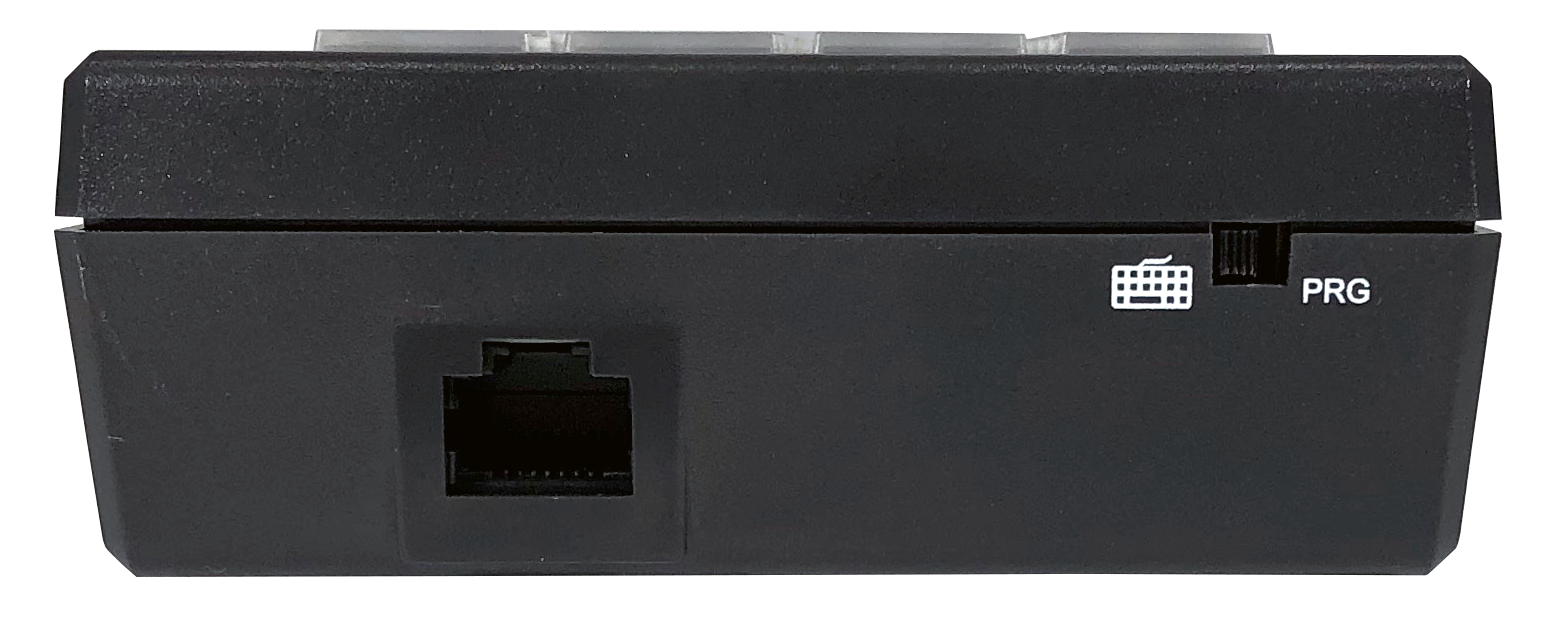

  • Detachable cable is 1.8m (6 ft) long USB Male to RJ45 Male
  • Consumes less than 10mA
  • Power drawn from USB port
  • Complies with FCC Class B standards
  • CE Approved
  • Uses gold plated industrial quality mechanical key switches
  • Total Switch travel is 3.5 mm (0.14″)
  • Operating force is 0.686N {79gf}
  • Key life: 5 x 107 cycles

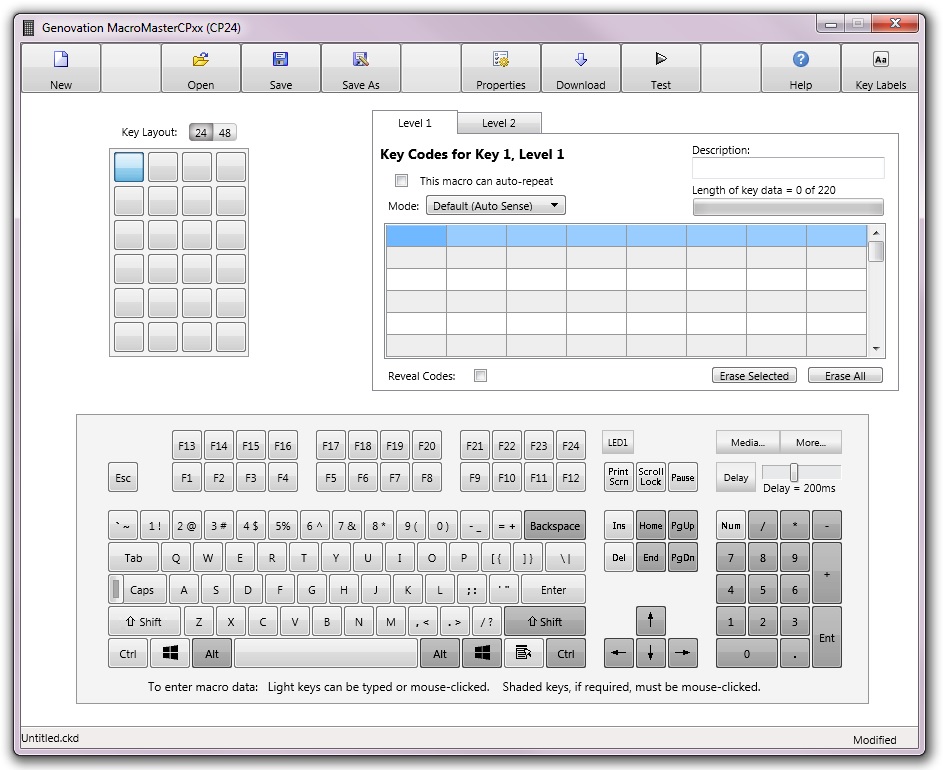

  • Includes redefinition program (MacroMasterCPxx.exe)
  • Software driver not required for operation
  • Temperature range is 0 to 70 C (32 to 158 F)
  • 15.5cm x 9.6cm x 3.5cm (6.1″ x 3.75″ x 1.5″)
  • Weight of Keypad alone is 0.54 lbs
  • Keypad with single ship pack is .45 kg (1.0 lbs)
  • Memory is 200 bytes per key or (4800 bytes max)
  • EEPROM is non-volatile, >100 year retention.
  • Will boot PC standalone in USB mode

Downloads

File Type
OS Supported
File(s)
File Name
MacroMasterCPxx Software (May 2019) USB
Windows XP & Newer
MacroMasterCPSxx_Setup_v1_00.exe (6.3MB)
Release Notes (Sep ’14)
MacroMaster CPSxx txt
Manual
File(s)
File Type
ControlPad CP24 Quick Start
PDF Files (91KB)
ControlPad CP24 Manual (Aug 2014)
PDF Files (949KB)
