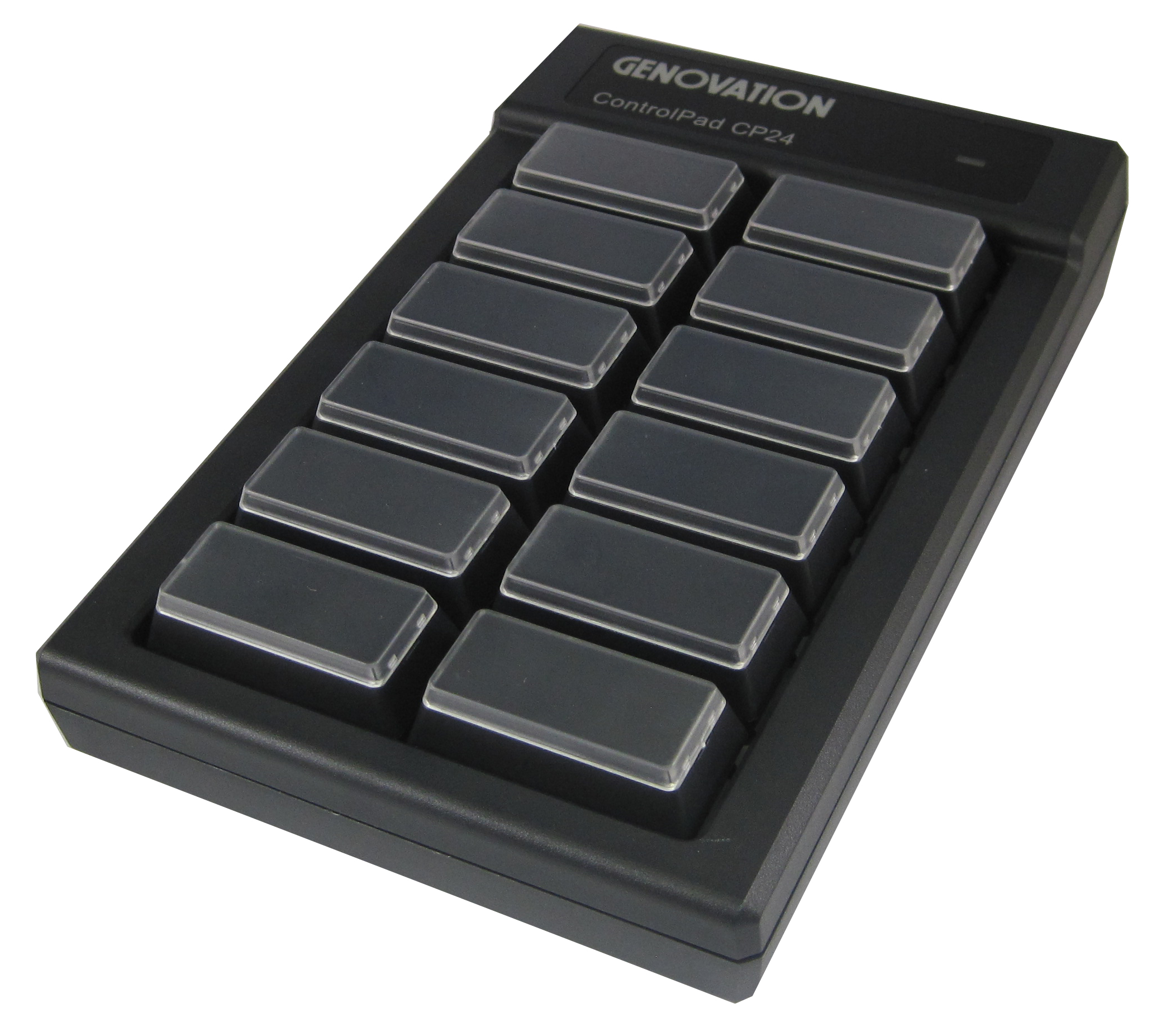

Genovation Controlpad CP24 BumpBar programmable keypad cherry MX2a key switches 100 million operations windows apple mac Linux angled view mouse emergency 911 pasp e911 ems

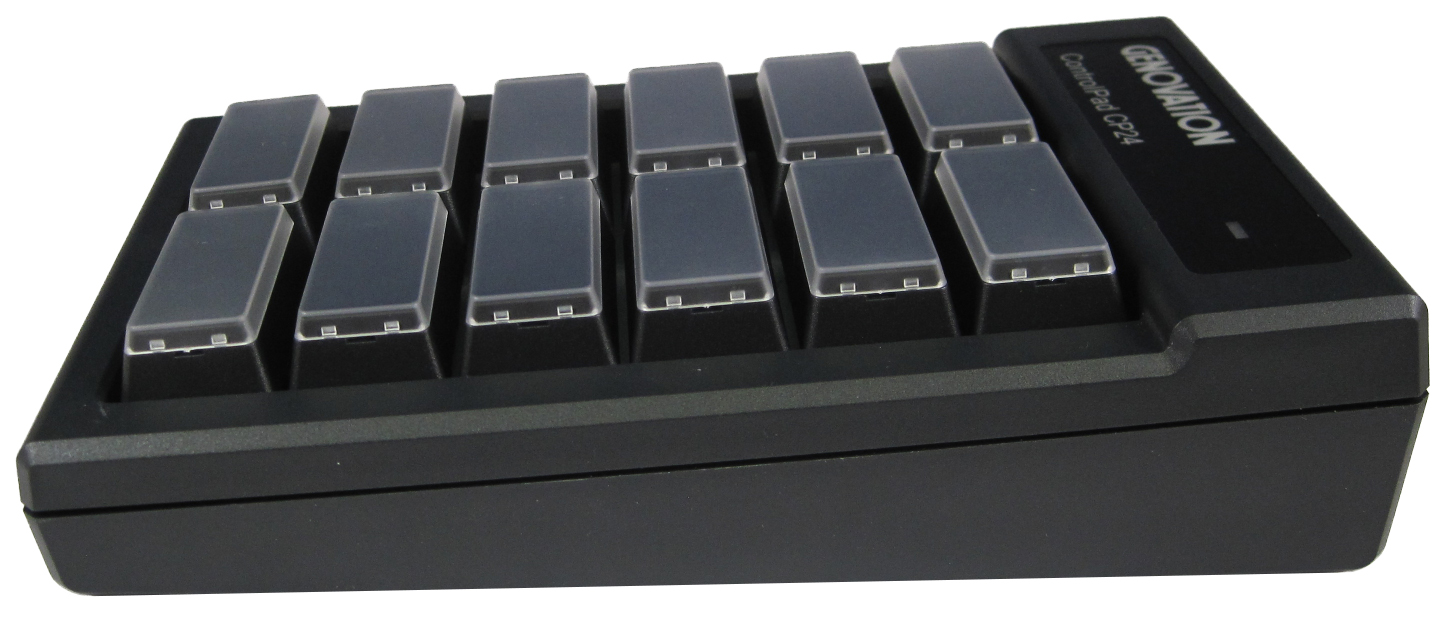

Genovation Controlpad CP24 BumpBar programmable keypad cherry MX2a key switches 100 million operations windows apple mac Linux side view mouse emergency 911 pasp e911 ems

ControlPad CP24 KVS/KVD BumpBar USB HID - Image 4

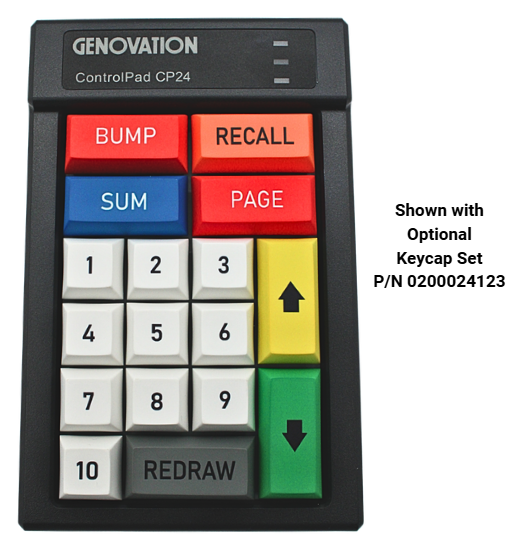

Genovation CP24 BumpBar programmable keypad printed keycap labels emergency 911 pasp e911 ems

Genovation MacroMasterCPxx programming software Controlpad CP24 CP48 windows compatible

MacroMasterCPxx Web Browser Programming APP (Windows, Apple MacOS, Linux Compatible)

ControlPad CP24 KVS/KVD BumpBar USB HID

Overview

ControlPad CP24-BB-USBHID – Programmable KDS / Bump Bar Controller

The ControlPad CP24-BB-USBHID is a compact, 12-key programmable USB HID bump bar controller
designed for high-performance kitchen environments including QSR, fast casual, and high-volume restaurant operations.

Built for seamless integration with modern Kitchen Display Systems (KDS) / Kitchen Video Systems (KVS),
the CP24 enables fast, reliable tactile control for BOH teams managing rapid order flow, ticket management,
and station coordination.

Key Kitchen Workflow Functions

Bump / complete order
Recall / unbump tickets
Fire / hold / expedite orders
Navigate and scroll KDS screens
Order routing and station filtering
Void, reprint, or modify orders

Built for Speed, Reliability, and Simplicity

Each key is fully programmable, with macro definitions stored directly in the device’s internal FLASH memory.
This ensures true plug-and-play USB HID functionality with no drivers required.
Deployment is fast, consistent, and scalable across multi-location restaurant chains.

The CP24 reduces reliance on touchscreen interaction, minimizes input errors, and improves kitchen throughput
during peak service periods by giving staff a dedicated physical interface for KDS control.

Integration Flexibility

Designed to integrate with leading POS-to-KDS ecosystems, the CP24 provides reliable physical control of digital
order queues in demanding restaurant environments.

Optional: For bulk orders, custom keycaps and custom labels are available (Call for details).

An optional serial interface version is available for legacy system compatibility.

Application

Specifically designed for interaction with order menus in busy restaurant kitchens
Universal programming on Windows, Apple MacOS, and Linux operating systems.
Saves all your hot-keys and shortcuts.
Increases speed and productivity while reducing typos.
Adds speed and fun to gaming.
Useful for CAD, multimedia, online trading or any other advanced software.
One touch control of email, password and login info.
Heavy duty metal frame design for industrial and commercial applications.

Now shipping with 3 Double Keys 3 Extra Single Keys and a Keycap Puller. Additional Key Caps can be purchased here.

The CP24-BumpBar USB HID is versatile, 24-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. No resident drivers required. The non-volatile, programmable memory allows the keypad to connect to any USB port without installing resident software. The keypad is easy to program using the Windows compatible software provided or with our NEW Web Browser APP. Assembled with high quality Cherry MX2A key switches, the keys are durable, yet light and easy to press — a feature lacking on lesser quality keypads.

24 fully programmable keys with relegendable keycaps
Now Compatible with Windows, Apple MacOS, and Linux Operating Systems using our Web Browser Programming APP
Includes Advanced Windows Programming Application
3 double keys, 3 extra single keys, and a keycap puller included
6′ Detachable USB cable with Type A plug included
Cable feature: “Yank-proof”
2-level programmable, equivalent to 96 keys
Supports USB Multimedia keys * and USB Mouse Functions
Supports F1 through F24
Optional protective latex covers available
Low power consumption
Uses the highest quality Cherry MX2A key switches rated at 100 million operations
1-year warranty

For Custom Keycap Quotes:
Go to: Link

Detachable USB cable is 1.8m (6 ft) long
Consumes less than 30mA
Power supplied by USB port
Complies with FCC Class B standards
CE Approved
Includes easy to use redefinition programming software (MacroMasterCPxx.exe)
Now Programs on Windows, Apple MacOS, and Linux Operating Systems with our Web Browser APP
Program macros to operate with USB keyboard or USB Mouse Controls
Software driver not required for operation
Uses Cherry MX2A gold plated industrial quality mechanical key switches
Key life: 1 x 108 cycles (100 Million Operations)
Silent soft touch momentary contact switches
Temperature range is 0 to 70C (32 to 158F)
Weight of keypad alone is 0.44 kg (1 lb 3 Oz)
Keypad with single ship pack is 0.9 kg (2 lb)
EEPROM is non-volatile, >100 year retention.
Relative humidity: 0% to 98%
Will boot PC standalone in USB Keyboard mode

File Type	OS Supported	File(s)	File Name
MacroMasterCPxx Software (v2.00a) USB	Windows Operating Systems (XP & Newer)	Download Now	MacroMasterCPxx_Setup_v2_00a.exe (8.6MB)
Universal MacroMasterCPxx Web APP Program your Controlpad from a Web Browser using any Operating System	Backward compatible with all CPxx firmware and hardware. (v1.0 to v4.1+) Run "CPxxLoad.exe" & Click "Options" Select the Version Number of your Keypad or Use "Auto-Detect" to find your Keypad	Click Here to Launch APP	Web Browser Application Compatible with Controlpad CPxx (v4.1 or Higher)

Manual	File(s)	File Type
ControlPad CPxx-USB Quick Start (v4.1+)	Download Now	PDF Files (91KB)
ControlPad CPxx-USB User Manual 2.00a	Download Now	PDF Files (949KB)

Description	File(s)	File Type
Firmware v1.70 * See release notes above * Use browser Save As	Contact Support	949.833.3355 ext.115
