KVS/KVD BumpBar CP24-BB17-USBHID

Overview

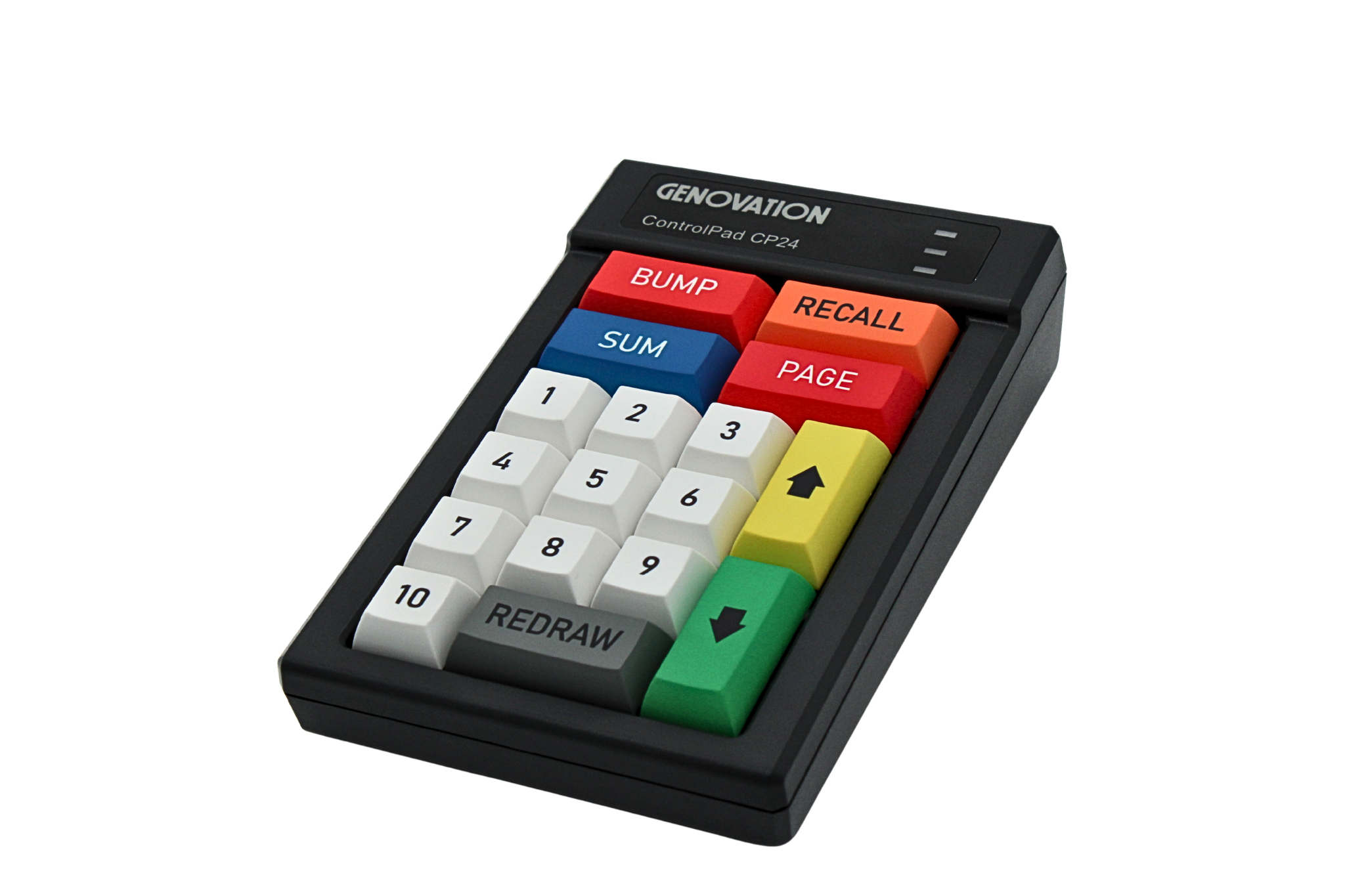

The ControlPad CP24-BB17-USBHID is a compact, 17-key programmable USB HID bump bar controller (KVS/KVD)
designed for high-performance kitchen environments including QSR, fast casual, and high-volume restaurant operations.

Built for seamless integration with modern Kitchen Display Systems (KDS) / Kitchen Video Systems (KVS),
the CP24-BB17 enables fast, reliable tactile control for BOH teams managing rapid order flow, ticket management,
and station coordination.

Key Kitchen Workflow Function

  • Bump: Completes and removes selected order.
  • Recall: Brings back previously bumped orders.
  • Sum: Displays total selected order quantities.
  • Page: Navigates between pages of orders.
  • Redraw: Refreshes the KDS order display.
  • Up: Moves selection to previous order.
  • Down: Moves selection to next order.
  • Numeric Keys: Enters order numbers or numeric values.

Built for Speed, Reliability, and Simplicity

Each key is fully programmable, with macro definitions stored directly in the device’s internal FLASH memory.
This ensures true plug-and-play USB HID functionality with no drivers required.
Deployment is fast, consistent, and scalable across multi-location restaurant chains.

Application

  • Specifically designed for interaction with order menus in busy restaurant kitchens
  • Universal programming on Windows, Apple MacOS, and Linux operating systems.
  • Saves all your hot-keys and shortcuts.
  • Increases speed and productivity while reducing typos.
  • Adds speed and fun to gaming.
  • Useful for CAD, multimedia, online trading or any other advanced software.
  • One touch control of email, password and login info.
  • Heavy duty metal frame design for industrial and commercial applications.



Now shipping with 3 Double Keys 3 Extra Single Keys and a Keycap Puller. Additional Key Caps can be purchased here.

The CP24-BB17 BumpBar USB HID is versatile, 17-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. No resident drivers required. The non-volatile, programmable memory allows the keypad to connect to any USB port without installing resident software. The keypad is easy to program using the Windows compatible software provided or with our NEW Web Browser APP. Assembled with high quality Cherry MX2A key switches, the keys are durable, yet light and easy to press — a feature lacking on lesser quality keypads.

  • 17 fully programmable keys with relegendable keycaps
  • Now Compatible with Windows, Apple MacOS, and Linux Operating Systems using our Web Browser Programming APP
  • Includes Advanced Windows Programming Application
  • 3 double keys, 3 extra single keys, and a keycap puller included
  • 6′ Detachable USB cable with Type A plug included
  • Cable feature: “Yank-proof”
  • 2-level programmable, equivalent to 96 keys
  • Supports USB Multimedia keys * and USB Mouse Functions
  • Supports F1 through F24
  • Optional protective latex covers available
  • Low power consumption
  • Uses the highest quality Cherry MX2A key switches rated at 100 million operations
  • 1-year warranty



For Custom Keycap Quotes:
Go to: Link

  • Detachable USB cable is 1.8m (6 ft) long
  • Consumes less than 30mA
  • Power supplied by USB port
  • Complies with FCC Class B standards
  • CE Approved
  • Includes easy to use redefinition programming software (MacroMasterCPxx.exe)
  • Now Programs on Windows, Apple MacOS, and Linux Operating Systems with our Web Browser APP
  • Program macros to operate with USB keyboard or USB Mouse Controls
  • Software driver not required for operation
  • Uses Cherry MX2A gold plated industrial quality mechanical key switches
  • Key life: 1 x 108 cycles (100 Million Operations)
  • Silent soft touch momentary contact switches
  • Temperature range is 0 to 70C (32 to 158F)
  • Weight of keypad alone is 0.44 kg (1 lb 3 Oz)
  • Keypad with single ship pack is 0.9 kg (2 lb)
  • EEPROM is non-volatile, >100 year retention.
  • Relative humidity: 0% to 98%
  • Will boot PC standalone in USB Keyboard mode
File Type
OS Supported
File(s)
File Name
MacroMasterCPxx Software (v2.00a) USB
Windows Operating Systems
(XP & Newer)
MacroMasterCPxx_Setup_v2_00a.exe (8.6MB)
Universal MacroMasterCPxx Web APP
Program your Controlpad from a Web Browser using any Operating System
Backward compatible with all CPxx firmware and hardware. (v1.0 to v4.1+)
Run "CPxxLoad.exe" & Click "Options"
Select the Version Number of your Keypad
or Use "Auto-Detect" to find your Keypad
Web Browser Application
Compatible with Controlpad CPxx
(v4.1 or Higher)
Manual
File(s)
File Type
ControlPad CPxx-USB Quick Start (v4.1+)
PDF Files (91KB)
ControlPad CPxx-USB User Manual 2.00a
PDF Files (949KB)
Description
File(s)
File Type
Firmware v1.70
* See release notes above
* Use browser Save As
Contact Support
949.833.3355 ext.115

Type

Universal, 17-key, fully-programmable

Interface

USB

Keys

17

Color

Black

Dimensions

6″ x 3.95″ x 1.5″

Weight

1.0000

OS Supported

Programming software requires Windows OS: – Windows XP & Newer. Once programmed, operates on any OS and any PC with USB: – Windows / Mac OS / Linux / DOS
