MIDI Patch Changer

Programmable MIDI Preset Keypad

Please see our forum topic for info on a 3rd party "900-RJ to MPC Conversion Kit".


  On This Page

        » Product Highlights
        » Ordering Information
        » Manual
        » Software
        » Screen Shot

Included cabling for:


        » 5 pin DIN MIDI
        » USB MIDI

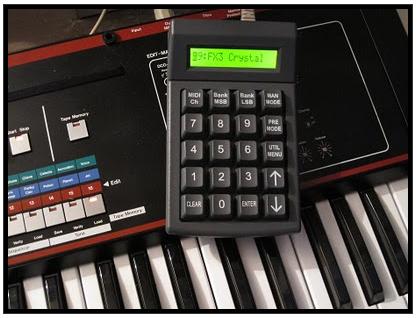

MIDI patch changer keypad


 Product Highlights

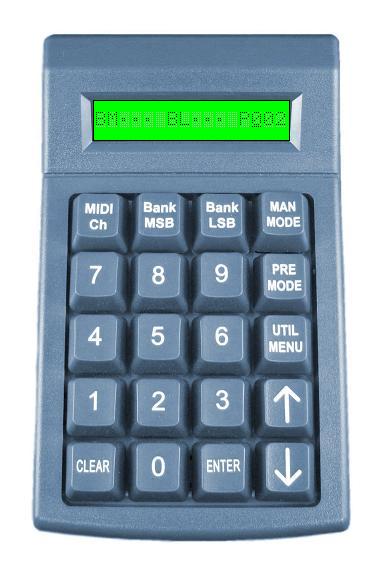

Description:   The MIDI Patch Changer is the perfect solution when you need to control MIDI presets for one or more devices, but you don't want to use a giant keyboard controller, MIDI footswitch or MIDI pedalboard. The MIDI Patch Changer has all the features you'd expect in a full-featured patch changing controller.

  • Programmable, compact and easy to use.
  • Manual mode lets you send Program Change as well as optional Bank Select MSB and LSB.
  • Preset performance mode sends program-change-per-MIDI-channel as well as Bank Select on all 16 channels simultaneously -- per preset.
  • Send 16 bytes of MIDI data of your choice (anything!) per Preset.
  • 1 x 16 super-twist back-lit LCD.
  • Detachable cabling for 5-pin DIN MIDI and USB-MIDI.
  • "Flash" memory holds patches and config data.
  • Firmware upgradeable (using MIDIOX or similar).
  • 1 year warranty.
Dimension:   15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
Weight:   0.3 kg (0.65 lbs)
Manual Mode:   For changing patches on the fly, you can select your MIDI Channel, optional Bank Selects* and Patch Change value(s).

The values can be typed in on the number pad or use the up/down keys to scroll through presets. When the patch number rolls over 0, enabled bank selects are automatically incremented or decremented. Move through hundreds of patches with ease.

The unit allows you to send the MIDI commands instantly as-you-type-them or prepare them first and execute them later with one keypress.

Bank Selects can be quickly disabled/muted when not needed or desired.

16 bytes of Arbitrary MIDI Data can be used for sending controller data, system exclusive, RPN, NRPN or anything you need.

When power is interrupted, the unit remembers exactly where you left off.

* MIDI Controller values 0 and 32.

Preset Mode:   You can configure 100 performance presets each containing:
  • 16x (one for each MIDI channel) bank MSB, bank LSB, patch change.
  • 16 bytes of arbitray MIDI data -- send what you want.
  • Name for the LCD.
  • Sys Ex implementation allows for setting up presets on a PC.
Extras:   You can upgrade the flash firmware so that your MIDI Patch Changer is always up to date.

Free Windows PC software for creating the Sys Ex files is available.

discuss in our forum Discuss this product in our forum



Ordering Information
This product is only available by applying a 3rd party "conversion kit" to the MiniTerm 900-RJ.



Manual and Software
Description File(s) File Type
User Manual
(Version 0.79, Oct. 2010, 1.0MB) 		Download Now pdf PDF File
Install Package
Installs the software EXE and the PDF Manual in
Program Files\Genovation\MidiPatcher
(Version 0.79, Oct. 2010, 1.5MB) 		Download Now pdf Setup EXE
Editor/Librarian software for Windows, standalone EXE
This version adds the Preset List panel.
(Version 0.79, Oct. 2010, 0.5MB) 		Download Now pdf ZIP Archive
MIDIOX software Download Now link Web Link



System Exclusive Files (.SYX)
Description File File Type
Firmware Version 0.79 - Adds LCD refresh on direct download. (Oct. 2010, 38KB) Download Now SYX File
Firmware Version 0.77 - Adds "Receive Program Change" option under the UTIL menu. (Sept. 2010, 38KB) Download Now SYX File
Firmware Version 0.76 - Adds Preset "Browse" mode. (June 2010, 38KB) Download Now SYX File
General MIDI bulk dump (100 presets, MIDI ch 1) Download Now SYX File



Testimonials
"I finished defining all the presets for mine and have tested it and it works like a charm!!! THANK YOU GENOVATION!!! All my patch changes take place in less than 1 second. I have a feeling this thing is going to be a very popular device among keyboard players..."
- Ed K (USA)
"I cannot thank you enough for the package that arrived on my doorstep last Thursday. Fantastic! I managed to program it up with the easy to use software editor and used it over the weekend and it worked perfectly. I will recommend this product to every keyboard player I know as it has so simplified my life on stage."
- Stephen S (England)
