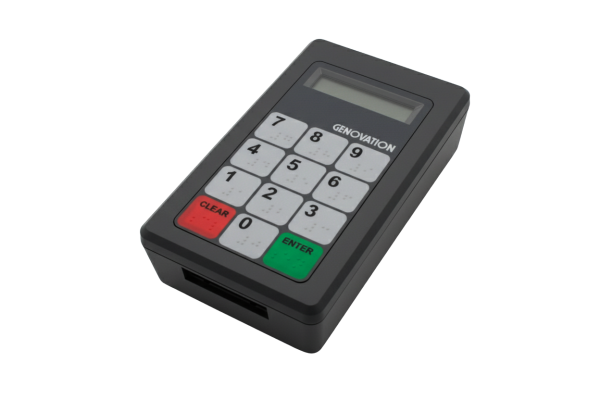

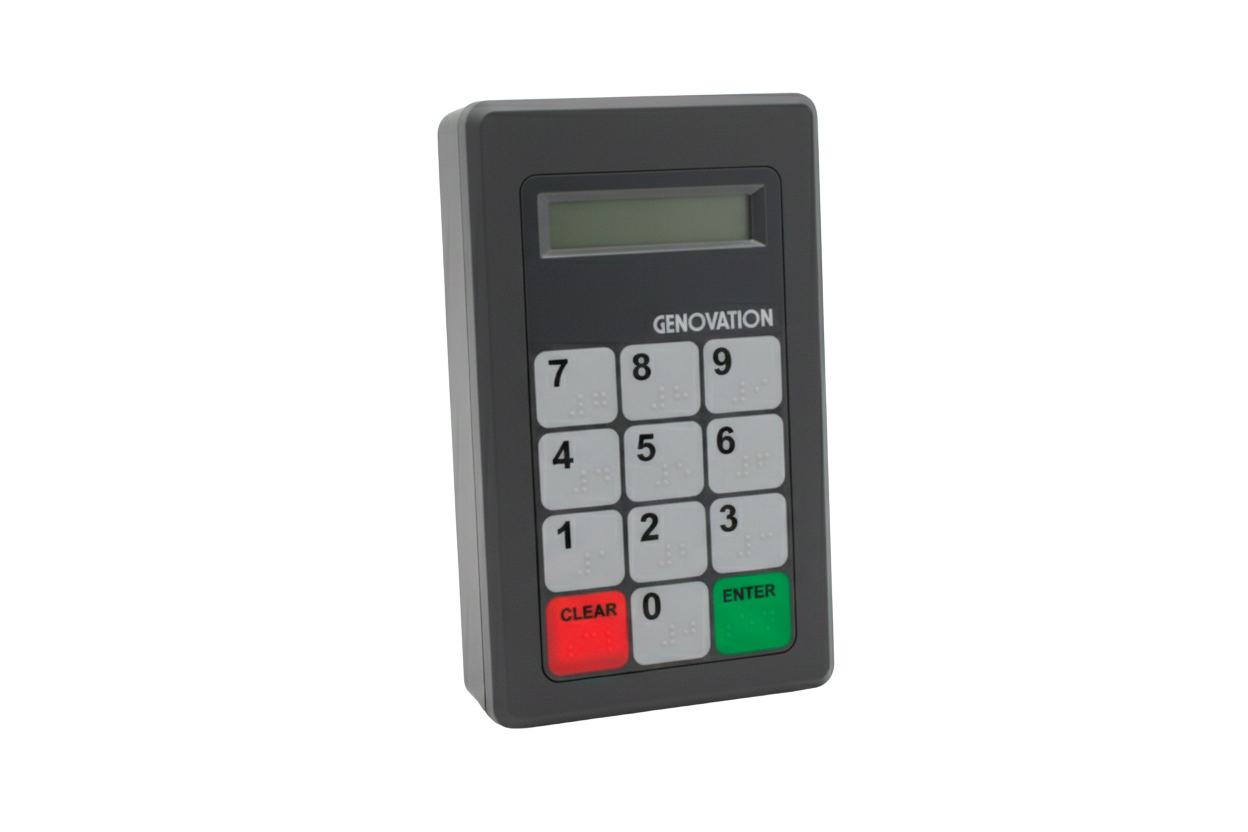

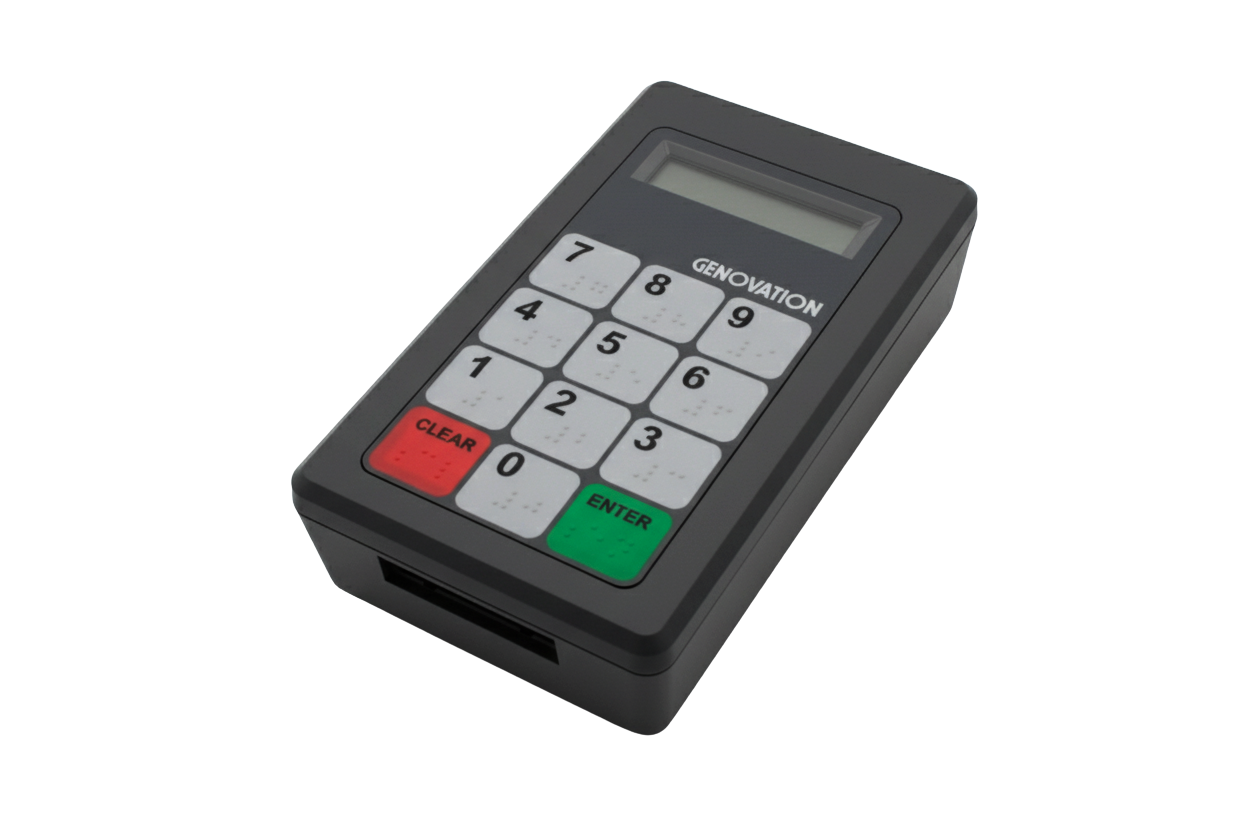

The Mini Data Terminal 908 is a Wall-Mount pin pad. It comes standard as USB-Virtual Serial, can also be programmed as USB-HID, Serial RS232 or Ethernet. It has a 12-key flat membrane layout, is fully programmable and comes with many card reader options.
Share:
Included PC Connections
Optional Network Connections
Quick Look
Card/Tag Reader Options
The Genovation MiniTerm 908 is a Wall-Mount Pin Pad. A fully programmable LCD mini-terminal. The Mini Data Terminal supports simple and complex re-programmable key macros and system configurations. Includes detachable USB cable for easy setup. DB9KIT is available separately for Serial connection and different applications. The 908 has multiple card/tag reader options for fast and easy data transactions. The LCD can also be used as a customer display (pole display).
Genovation’s MiniTerms are ideal whenever you need to add a user interface to a machine, device or process. The possibilities are endless — MiniTerms are right at home whether connected to PCs, printers, automation or industrial control PLC systems, cash registers or other POS terminals, electronic musical instruments, high-speed video cameras, security systems, CNC mill control and industrial pendants, access control systems and digital signage — just to name a few.
*Custom Inquiries, call us 949-833-3355 or E-mail.
*Ask us about custom Din Rail mounting options. E-mail.
| Mechanical Data: | |
| Life Cycles | 2 x 107 |
| Key Type | Tactile sealed membrane (20,000,000+ operations) |
| Operating Force | 0.686N (79gf) |
| Color | dark gray |
| Number of Keys | 12 |
| Electrical Data: | |
| Power Supply | 5v DC, 60ma (not including card reader or network option). 400mA adapter included for RS232, USB is bus powered. |
| Key Roll-Over | Selectable 1 or 2 key |
| Memory | FLASH+EEPROM non-volatile, >100 year retention |
| LCD Display: | |
| Type | 2×16 Super-Twist “STN” |
| Backlight | Yes (LED) |
| Light Emitting Diodes: | |
| Quantity | 2 |
| Color(s) | 1 Green, 1 Red – Both user programmable |
| Dimensions: | |
| Length x Width x Height | 18.41cm x 10.50cm x 4.28cm (7.25 x 4.125 x 1.68) |
| Environmental: | |
| Operating Temperature | 0 to 70 degrees C (32 to 158 degrees F) |
| Operating Humidity | 0% to 98% non-condensing |
| FCC Rating | Class B Device |
| Weight: | |
| Keypad (no options) | .26kg (.58lbs) |
| Single Keypad Ship Weight | – – – |
| Interface: RS232 | |
| Type | Serial RS232C compliant |
| Cable Length | Included 6ft (1.8m), detachable via RJ-45 connection Optional 25ft (7.6m) cable available</span |
| Connection | RJ-45 to DB-9 female |
| Data Rate | 1200, 2400, 4800, 9600, 19200, 31250 (MIDI), 38400, 57600 and 115200 baud, full duplex |
| Interface: USB | |
| Type | USB 1.0, 1.1 & 2.0 compliant, bus powered |
| Cable Length | Included 6ft (1.8m), detachable via RJ-45 connection Optional 25ft (7.6m) cable available |
| Connection | RJ-45 to USB standard Type A |
| Data Rate | USB Full Speed |
| Interface: Ethernet | |
| Type | 10Base-T/100Base-TX (Auto-Sensing) |
| Cable Length | Not included |
| Connection | RJ-45 |
| Protocols | TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP |
| Internal Reader Options: | |
| Barcode Card/Tag/Label Scanner | Front firing, visible red beam |
Supported Bar Code Formats: o Standard CODE 39 o Full ASCII CODE 39 o Interleaved 2 of 5 o China Postal Code o Codabar o Code 32 o MSI Plessy Code o Code 11 o Industrial 2 of 5 o Matrix 2 of 5 o Telepen Code o UK Plessy Code o IATA Code o Code 93 o EAN-13 o EAN-8 o UPC-A o UPC-E o Code 128 o EAN / UCC 128 o RSS-14 o RSS-Limited |
| RS232 Ext. Wedge Device | Rear panel RJ45 input jack allows external RS232 serial device wedging/pass-thru. 1200 to 115.2 k baud rate. Auto converts to host baud rate or USB. |
| Product Accessories: | |
 |
 |
| RS-232 Serial Cable | USB Cable |
|
