ControlPad CP24 USB HID

ControlPad CP24 USB HID

Email to a Friend

Quick Overview

The ControlPad CP24-USBHID is versatile, 24-key programmable USB Multimedia keyboard.
Your custom macro key definitions are stored within the CP24-USBHID’s internal FLASH memory making it a true “PLUG and PLAY” programmable USB keyboard.

Additional Information

Description

Now shipping with 3 Double Keys, 3 Single Keys, and a Keycap Puller. Additional Key Caps can be purchased here.

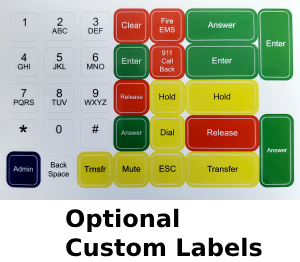

The CP24-USBHID is versatile, 24-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The non-volatile, programmable memory allows the keypad to connect to any USB port without installing resident software. The keypad is easy to program using the Windows compatible software provided. Assembled with high-quality Cherry MX key switches, the keys are durable, yet light and easy to press — a feature lacking on lesser quality keypads.

  • 24 fully programmable keys with relegendable keycaps
  • 3 double keys, 3 extra single keys, and a keycap puller included
  • 6′ USB cable with Type A plug
  • 2-level programmable, equivalent to 48 keys
  • Programmable LED Indicator Light (top right)
  • Supports USB MultiMedia keys *
  • Supports F1 through F24
  • Optional protective latex covers available
  • Low power consumption
  • Uses the highest quality key switches rated at 50 million operations
  • 1-year warranty



For more information on customizing your own keypad, call us 949-833-3355.

Type

Universal, 24-key, fully-programmable

Interface

USB

Keys

24

Color

Black

Dimensions

6″ x 3.95″ x 1.5″

Weight

1.0000

OS Supported

Programming software requires Windows OS: – Windows XP & Newer. Once programmed, operates on any OS and any PC with USB: – Windows / Mac OS / Linux / DOS / e

Specifications

  • Detachable cable is 1.8m (6 ft) long USB Male to RJ45 Male
  • Consumes less than 10mA
  • Power drawn from USB port
  • Complies with FCC Class B standards
  • CE Approved
  • Uses gold plated industrial quality mechanical key switches
  • Total Switch travel is 3.5 mm (0.14″)
  • Operating force is 0.686N {79gf}
  • Key life: 5 x 107 cycles
  • Includes redefinition program (MacroMasterCPxx.exe)
  • Software driver not required for operation
  • Temperature range is 0 to 70 C (32 to 158 F)
  • 15.5cm x 9.6cm x 3.5cm (6.1″ x 3.75″ x 1.5″)
  • Weight of Keypad alone is 0.54 lbs
  • Keypad with single ship pack is .45 kg (1.0 lbs)
  • Memory is 200 bytes per key or (4800 bytes max)
  • EEPROM is non-volatile, >100 year retention.
  • Will boot PC standalone in USB mode

Downloads

File Type
OS Supported
File(s)
File Name
MacroMasterCPxx Software (May 2019) USB
Windows XP & Newer
MacroMasterCPxx_Setup_v1_70.exe (6.3MB)
Release Notes
MacroMaster CPxx txt
Manual
File(s)
File Type
ControlPad CP24 Quick Start
PDF Files (91KB)
ControlPad CP24-USB User Manual 1.61 (Mar 2019)
PDF Files (949KB)
Description
File(s)
File Type
Firmware v1.13
* See release notes above
* Use browser Save As
Contact Support
949.833.3355 ext. 115
