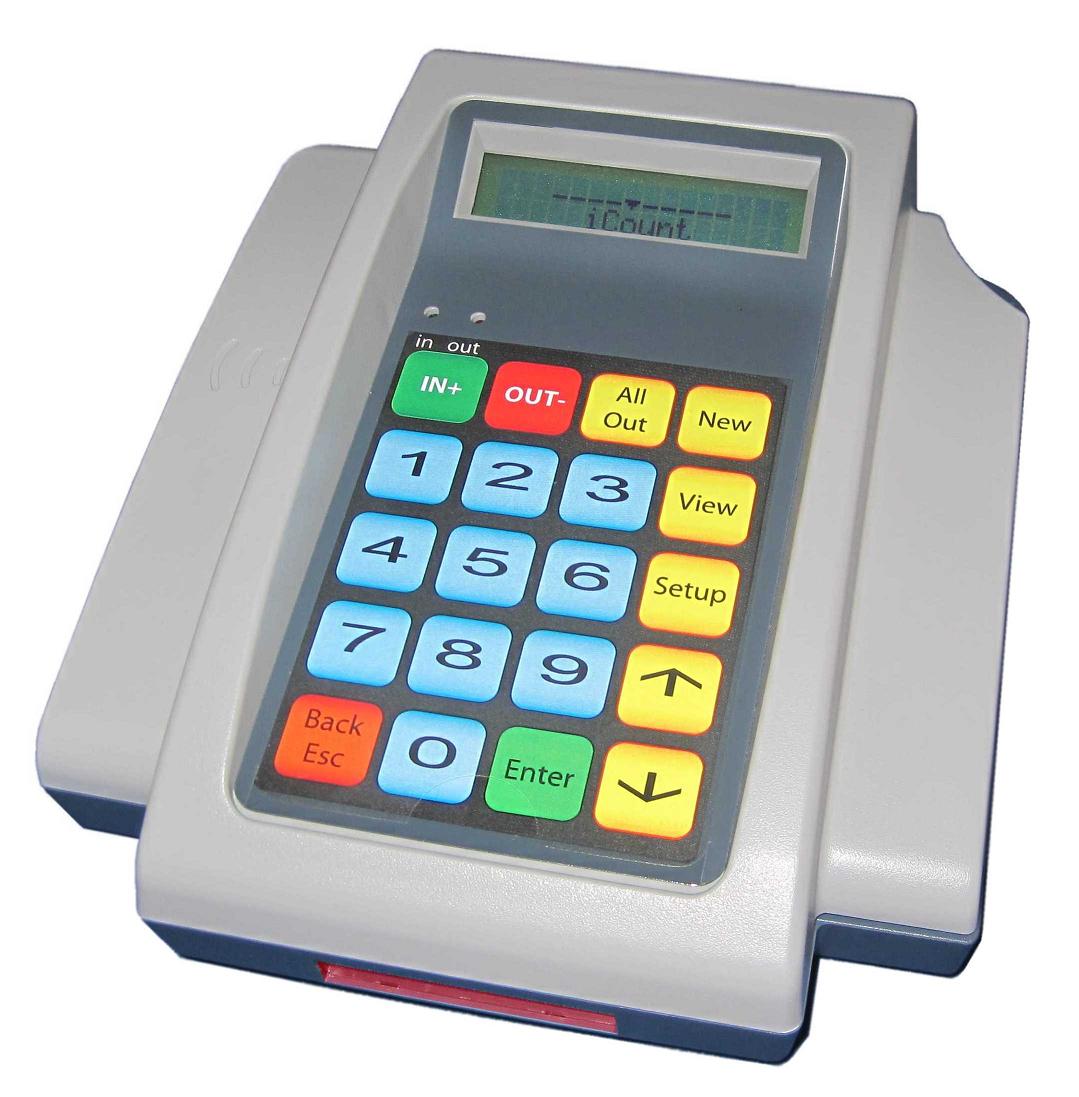

iCount Attendance Keypad


 Product Highlights

Description:   The Genovation iCount is the perfect device for keeping track of students, employees, attendees and riders as they utilize classroom space or ride on buses. The iCount is available with many ID reading options to fit your circumstances and budget. Child or senior left behind? Never again!

The iCount is a user-friendly solution that operates standalone (only 5v DC is required), shows the running headcount (tally) and will keep track of who is “IN’ and who is “OUT” including their ID numbers. No PC is required, however the unit can connect to a PC and upload the information to a document or spreadsheet.

  • Take attendance/rollcall of pupils in class
  • Track students and seniors on bus field trips
  • Track attendees at a conference or trade show
The unit comes supplied with cables for both USB and RS232 PC connections and a 120v AC to 5v DC wall adapter. Optional power adapters are available for running the iCount from your 12v vehicle power.
  • Easy to set up and use
  • Approximately one second scan time per student
  • 2 x 16 super-twist back-lit LCD (sealed)
  • Detachable cables for RS-232 and USB (both included)
  • Internal buzzer/alarm/audible key beeper
  • "Flash" memory holds ID numbers and check-in status
  • 1 year warranty
Dimension:   18.5cm x 15.0cm x 5.3cm (7.25" x 6.0" x 2.25")
Weight:   0.3 kg (0.65 lbs)





Specifications
Mechanical Data:
Life Cycles 2 x 107
Key Type Tactile sealed membrane (20,000,000+ operations)
Operating Force 0.686N (79gf)
Color Two tone, light and dark gray
Number of Keys 20

Electrical Data:
Power Supply 5v DC, 60ma
(not including card reader or network option).
400mA adapter included for RS232, USB is bus powered.
Memory FLASH+EEPROM non-volatile, >100 year retention

LCD Display:
Type 2x16 Super-Twist “STN”
Backlight Yes (LED)

Light Emitting Diodes:
Quantity 2
Color(s) 1 Green, 1 Red

Dimensions:
Length x Width x Height 18.5cm x 15.0cm x 5.3cm (7.25” x 6.0” x 2.25”)

Environmental:
Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)
Operating Humidity 0% to 98% non-condensing
FCC Rating Class B Device

Weight:
Keypad (no options) 0.3kg (0.65lbs)
Single Keypad Ship Weight 1.0kg (2.0lbs)

Interface: RS232
Type Serial RS232C compliant
Cable Length Included 6ft (1.8m), detachable via RJ-45 connection
Optional 25ft (7.6m) cable available
Connection RJ-45 to DB-9 female
Data Rate 9600 baud

Interface: USB
Type USB 1.0, 1.1 & 2.0 compliant, bus powered
Cable Length Included 6ft (1.8m), detachable via RJ-45 connection
Optional 25ft (7.6m) cable available
Connection RJ-45 to USB standard Type A
Data Rate USB Full Speed

Interface: Ethernet
Type 10Base-T/100Base-TX (Auto-Sensing)
Cable Length Not included
Connection RJ-45
Protocols TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP

Interface: Wi-Fi
Type 802.11 b/g wireless networking
Range Up to 328 feet indoors
Output Power 14dBm +2.0 dBm/-1.5 dBm (does not include antenna gain)
Sensitivity -91dBm @ 1Mbps
Protocols ARP, UDP, TCP, Telnet, ICMP, SNMP, DHCP, BOOTP, Auto IP, HTTP, SMTP, TFTP

Internal Reader Options:
Barcode Card/Tag/Label Scanner Front firing, visible red beam
Slotted Barcode Card Reader Infrared swipe reader for Barcode ID cards, located on right hand side
Magnetic Card Reader Mag card swipe reader for ATM, driver's license, credit cards, etc. Located on right hand side.
RFID Card/Label/Tag Reader 125kHz or 13.56MHz MiFARE MF1/Ultralight cards, labels and tags. Located on left hand side.
RS232 Ext. Wedge Device Rear panel RJ45 input jack allows external RS232 serial device wedging/pass-thru. 1200 to 115.2 k baud rate. Auto converts to host baud rate or USB.





Ordering Information
Part Number: Description:
801-RJ iCount firmware installed in MiniTerm 901-RJ
907-RJ iCount firmware installed in MiniTerm 907-RJ.
For card reader ordering information, see the 907 part number builder.



Manual
Manuals File(s) File Type
iCount User Manual
(Ver 1.00, Aug. 2009, 0.5MB) 		Download Now PDF File
