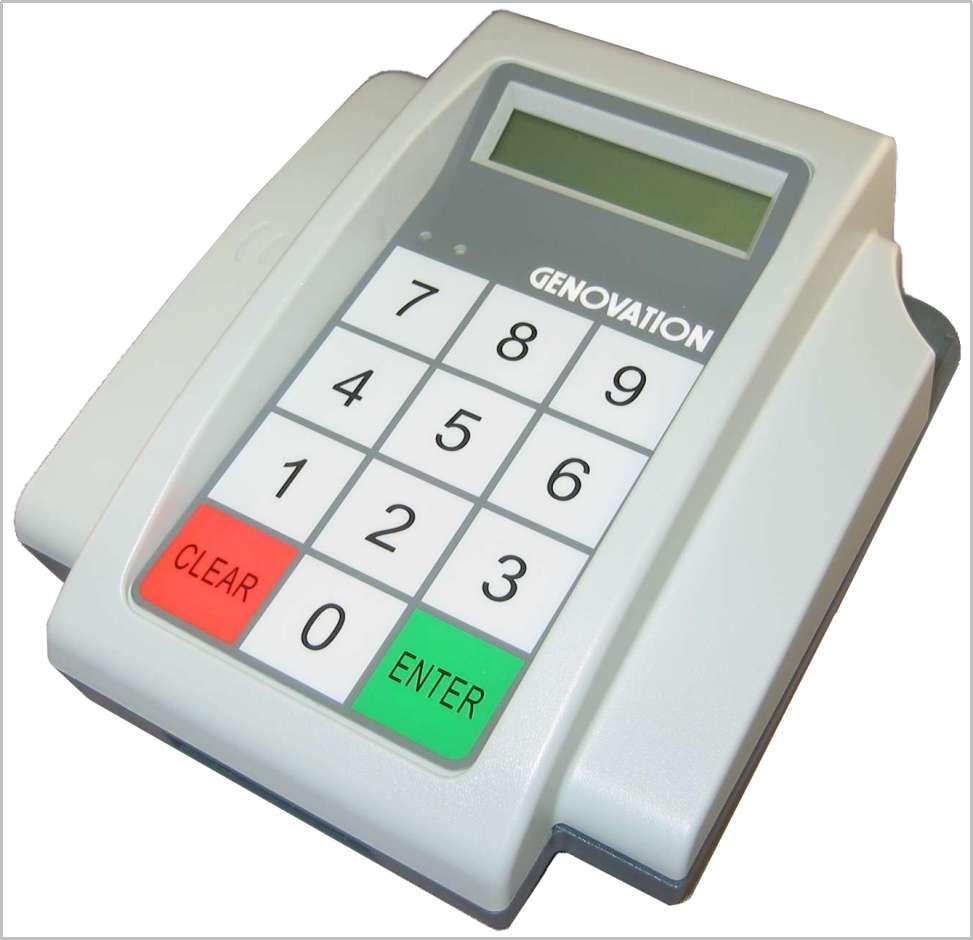

MiniTerm 905
Fully Programmable
Mini-Terminal / LCD 12-Key Pinpad
Multiple
host and card reader options
| |
|
|
|
Product Highlights
|
|
Description:
|
The Genovation MiniTerm 905 is a fully programmable LCD mini-terminal. and supports simple
and complex re-programmable key macros and system configurations. Includes detachable
serial (RS232) and USB cables for easy setup and different applications.
It also has multiple internal device options for fast and easy data transactions.
- Easy to set up and use
- Operates in standard terminal or line-edit (pin-pad) mode
- 12 keys: sealed membrane, 20 million operations
- 2x16 super-twist back-lit LCD (sealed)
- Fully-programmable serial settings & key table
- Detachable cables for RS-232 and USB included
- RS232C compliant (full-duplex), supports a wide variety of baud rates and word formats
- Selectable USB virtual serial and USB HID keyboard functionality
- Ethernet Device Server and Virtual COM port
- Internal buzzer/alarm/audible key beeper
- "Flash" memory holds Key data and Settings
- Includes Genovation re-programming software "MacroMaster232" for easy customization & setup
- Will work with legacy COM port applications
- LCD Smartie (serial LCD) plug-in available
- Supports internal devices such as: Magnetic card reader, Barcode scanner, Barcode slot reader, RFID, and Fingerprint readers.
- Automated LCD screen (Scripting mode)
- 1 year warranty
|
| Type: | Sealed
12 key membrane terminal |
| Interface: | Standard RS232C
serial |
| | USB
virtual serial COM port |
| | Standard
USB HID keyboard |
| | Ethernet
device server |
| Programmable: | Yes |
| Color: | Two-tone
gray |
| Dimension: |
18.5cm x 15.0cm x 5.3cm (7.25" x 6.0" x 2.25") |
| Weight: | 0.3kg (0.65 lbs)
|
 | | | OS Requirements | | OS Supported: | Windows 95 / 98 / ME / NT / 2000 / XP / Vista | |
|
Specifications |
|
Mechanical Data: |
|
Life Cycles |
2 X 107 |
|
Key Type |
Tactile sealed
membrane (20,000,000+ operations) |
|
Operating Force |
0.686N{79gf} |
|
Color |
Two tone, Light and
Dark gray |
|
Number of Keys |
12 |
| |
|
Electrical Data: |
|
Power Supply |
5VDC, <30ma
RS232 adapter supplied, USB bus powered |
|
Key Roll-Over |
2-key |
|
Memory |
FLASH non-volatile,
>100 year retention |
| |
|
LCD Display: |
| Type |
2x16 Super-Twist
“STN” |
| Backlight |
LED |
| |
|
Dimensions: |
| Length x Width x
Height |
18.5cm x 15.0cm x
5.3cm (7.25” x 6.0” x 2.25”) |
| |
|
Environmental: |
| Operating
Temperature |
0 to 70 degrees C
(32 to 158 degrees F) |
| Operating Humidity |
0% to 98%
non-condensing |
| FCC Rating |
Class B Device |
| |
|
Weight: |
| Keypad |
0.3kg (0.65lbs) |
| Single Keypad Ship
Weight |
1.0kg (2.0lbs) |
| |
|
Interface: RS232 |
| Type |
Serial RS232C
compliant |
| Cable Length |
6ft (1.8m)
(Detachable via RJ-45 connection) |
| Connection |
RJ-45 to DB-9
female |
|
Interface: USB |
| Type |
USB 1.1 & 2.0
compliant bus powered |
| Cable Length |
6ft (1.8m)
(Detachable via RJ-45 connection) |
| Connection |
RJ-45 to USB
standard Type A |
|
Interface: Ethernet |
| Type |
10Base,
T-100Base-TX (Auto-Sensing) |
| Cable Length |
Not included |
| Connection |
RJ-45 |
| Protocols |
TCP/IP, UDP/IP,
ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP |
|
Internal Reader Options: |
| Barcode Scanner |
Front mounted,
Visible RED Beam |
| Slotted Barcode
Reader |
Infrared swipe
reader for Barcode ID cards |
| Magnetic Card
Reader |
For reading ATM,
credit cards, and magnetic cards |
| RFID Card / Label
Reader |
Reads RFID cards
and RFID Labels |
| Fingerprint ID
Reader |
Scans and encodes
fingerprints into usable data |
| RS232 Ext. Wedge
Device |
Allows external
RS232 serial device sharing |
Driver / Software
|
|
File Type
|
OS Supported |
File(s)
|
File Name
|
Software
(March 2007)
|
Windows 2K/XP, Vista (32-bit)
|
Download Now
|
MiniTermPro_setup_3_2.exe
(3 MB)
|
Software
(Oct 2007)
|
Windows 2K/XP, Vista (32-bit)
|
Download Now
|
MiniTermProSetup_v4_10.exe
(3 MB)
|
|
| |
|
User and Developer Resources
|
|
Manuals
|
File(s)
|
File Type
|
|
MiniTerm Quick Set-up Guide
|
Download Now
|
PDF File
|
|
MiniTerm User/Developer Manual
|
Download Now
|
PDF File
|
MiniTerm HID Keyboard Setup Brief
(Configuring MiniTerm as MiniTerm-K)
|
Download Now
|
PDF File
|
|
MiniTerm Low-Level Application Note
|
Download Now
|
PDF File
|
|
MiniTerm Low-Level Application Note Files
|
Download Now
|
RAR Archive
|
Using the MiniTerm as a Serial LCD
(including LCD Smartie)
|
Download Now
|
PDF File
|
|
Genovation LCD Smartie display plug-in
|
Download Now
|
ZIP Archive
|
|
Protect your software! Request a copy of our Genovation
Keypad as Software Copy Protection white paper.
|
Request Now
|
PDF Request
|
|
| |
| Ordering
Information: 905 Part Number Builder |
|
Select the host port type:
Select the optional reader type:
|
|
|
| |
|
