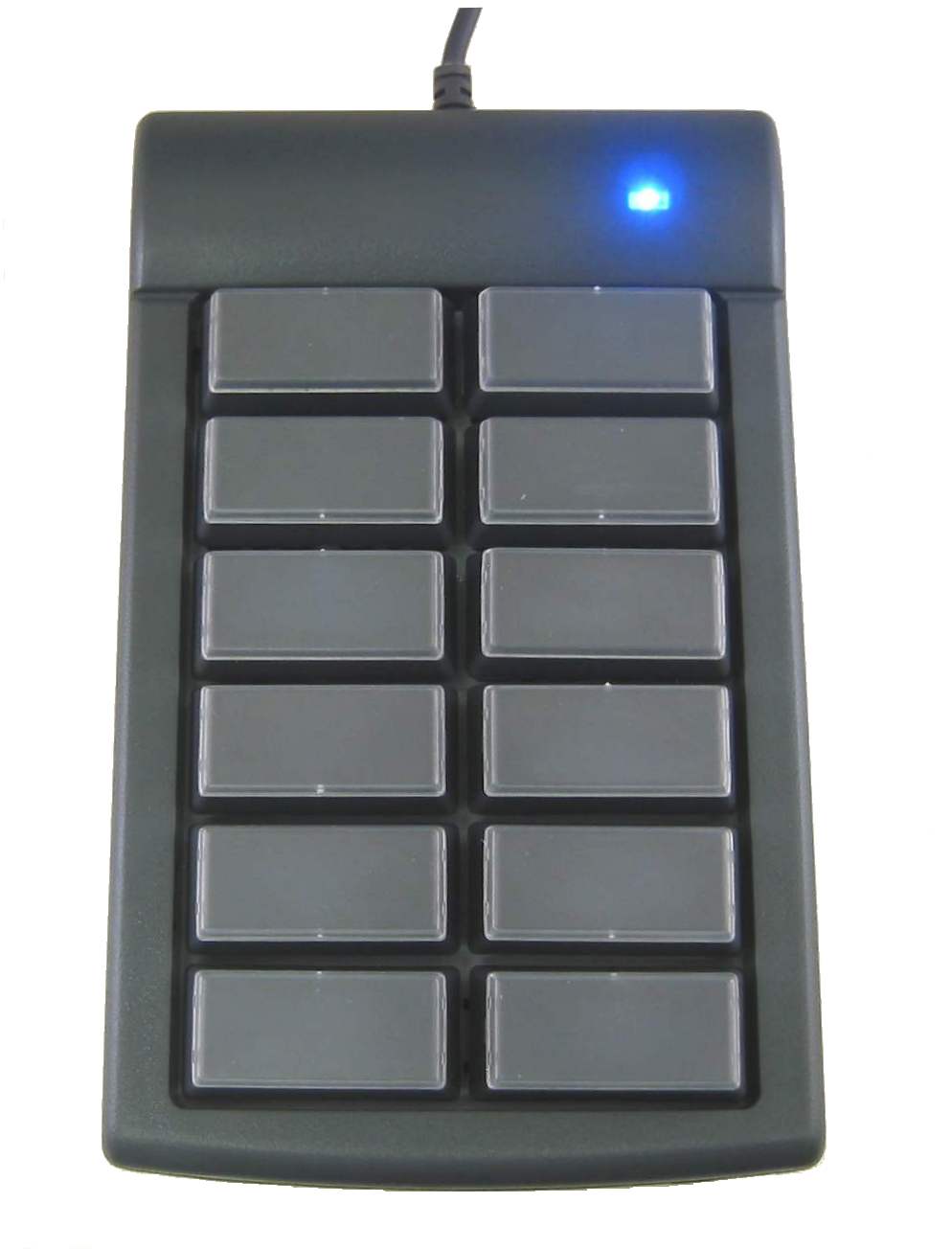

BumpBar 684BB - RS-232 Serial
|
|
|
|
|
|
|
|
Product Highlights
|
|
|
|
Description:
|
The BumpBar 684BB is a versatile, cost-effective, programmable bump bar.
Assembled with high quality Cherry MX keyswitches on a metal frame.
The keys are durable, yet light and easy
to press -- a feature lacking on lesser quality devices.
The keys are relegendable, allowing the user to label them to fit a specific need.
The double keys can be arranged horizontally or vertically. They
can also be split into single keys. Custom key caps can be ordered.
The bump bar is easily configured using the Windows software provided. The
non-volatile, programmable memory allows the keypad to connect to any RS-232
port without installing resident software. The unit operates over a wide
input voltage range, powered from either the host or an external power supply.
Ships with 12 Double Keys and a Keycap Puller. Additional key caps can be
purchased here. Optional protective latex covers available.
- RS-232 serial port operation or optional 5v DC power adapter
- Female DB-9 connector (other options available)
- Low power consumption
- Uses the highest quality key switches rated at 50 million operations
- Windows configuration software MacroMaster684
- 1-year warranty
For more information on customizing your own version, please see
call us at 949-833-3355.
|
|
|
|
Keys:
|
12 double key caps over 24 switches
|
|
Interface:
|
RS-232C
|
|
Programmable:
|
Yes
|
|
LED:
|
Blue
|
|
Color:
|
Dark Gray
|
|
Dimension:
|
15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
|
|
Unit Weight:
|
0.30 kg (0.65 lbs)
|
|
Ship Weight:
|
0.45 kg (1.00 lbs)
|
|
|
|
|
|
|
Operating Systems and Hosts
|
|
|
|
OS Supported:
|
Keypad operates on any OS and any PC with RS232:
- Windows / Mac OS / Linux / DOS / Embedded etc.
Free Windows configuration software:
- Windows 98/ME 2000/XP/Vista (32-bit)
|
|
|
|
|
|
|
Specifications
|
|
|
|
•
|
Attached cable is 1.5m (5 ft) long. Longer cables available.
|
|
•
|
Input voltage range from +5v to +24v supplied
from either the host or external supply. Standard model is port- powered.
+5v DC adapter option available.
|
|
•
|
Complies with FCC Class B standards
|
|
•
|
Uses gold plated industrial quality mechanical key switches
|
|
•
|
Total Switch travel is 3.5 mm (0.14")
|
|
•
|
Operating force is 0.686N {79gf}
|
|
•
|
Key life: 50,000,000 cycles
|
|
•
|
Temperature range is 0 to 70 C (32 to 158 F)
|
|
•
|
15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
|
|
•
|
Standard settings are 9600 baud, 8N1.
1200 baud through 57.6 kbaud supported.
|
|
•
|
Includes redefinition program (MacroMaster684.exe)
|
|
•
|
EEPROM is non-volatile, >100 year retention.
|
|
|
|
|
|
|
|
