ControlPad 684 - Programmable RS-232 Serial Keypad
|
|
|
|
|
|
|
|
Product Highlights
|
|
|
|
Description:
|
The ControlPad684 is a versatile, cost-effective, programmable keypad.
Assembled with high quality Cherry MX keyswitches on a metal frame.
The keys are durable, yet light and easy
to press -- a feature lacking on lesser quality devices.
The keypad is easily configured using the Windows software provided. The
non-volatile, programmable memory allows the keypad to connect to any RS-232
port without installing resident software. The unit operates over a wide
input voltage range, powered from either the host or an external power supply.
The keys are relegendable, allowing the user to label them to fit a specific need.
Double-size keys and Numbered keys (0-9, BS, Enter) are available as an option.
Custom key caps can be ordered. Additional key caps can be purchased here.
Optional protective latex covers available.
- RS-232 serial port operation or optional 5v DC power adapter
- Female DB-9 connector (other options available)
- Low power consumption
- Uses the highest quality key switches rated at 50 million operations

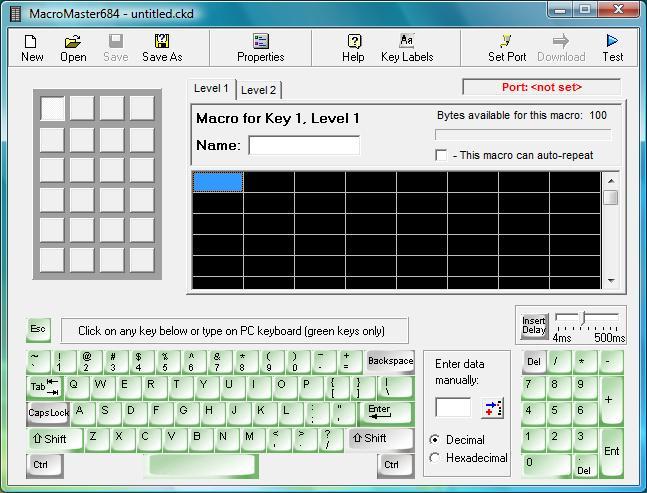

- Windows configuration software MacroMaster684
- 1-year warranty
For more information on customizing your own version, please see
call us at 949-833-3355.
|
|
|
|
Keys:
|
24
|
|
Interface:
|
RS-232C
|
|
Programmable:
|
Yes
|
|
LED:
|
Blue
|
|
Color:
|
Dark Gray
|
|
Dimension:
|
15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
|
|
Unit Weight:
|
0.30 kg (0.65 lbs)
|
|
Ship Weight:
|
0.45 kg (1.00 lbs)
|
|
|
|
|
|
|
Operating Systems and Hosts
|
|
|
|
OS Supported:
|
Keypad operates on any OS and any PC with RS232:
- Windows / Mac OS / Linux / DOS / Embedded etc.
Free Windows configuration software:
- Windows 98/ME 2000/XP/Vista (32-bit)
|
|
|
|
|
|
|
Specifications
|
|
|
|
•
|
Attached cable is 1.5m (5 ft) long. Longer cables available.
|
|
•
|
Input voltage range from +5v to +24v supplied
from either the host or external supply. Standard model is port- powered.
+5v DC adapter option available.
|
|
•
|
Complies with FCC Class B standards
|
|
•
|
Uses gold plated industrial quality mechanical key switches
|
|
•
|
Total Switch travel is 3.5 mm (0.14")
|
|
•
|
Operating force is 0.686N {79gf}
|
|
•
|
Key life: 50,000,000 cycles
|
|
•
|
Temperature range is 0 to 70 C (32 to 158 F)
|
|
•
|
15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
|
|
•
|
Standard settings are 9600 baud, 8N1.
1200 baud through 57.6 kbaud supported.
|
|
•
|
Includes redefinition program (MacroMaster684.exe)
|
|
•
|
EEPROM is non-volatile, >100 year retention.
|
|
|
|
|
|
|
|
Popular Accessories
|
|
|
|
|
|
|
Relegendable Keycap, 1 x 2
|
0-9, Backspace & Enter Key Set
|
25' RS-232 Serial Cable
|
5v DC Adatper
|
Polyskin Cover
|
Software
|
|
File Type
|
OS Supported
|
File(s)
|
File Name
|
|
MacroMaster684 Software (Aug '09)
|
Windows 95/98/Me, NT/2K/XP, Vista 32-bit
|
Download Now
|
684ver4_30.exe
|
|
|
|
|
User Manual
|
|
Manual
|
File(s)
|
File Type
|
|
BumpBar 684 Manual (Aug 2009)
|
Download Now
|
PDF Files (2MB)
|
|
| |
|
