BumpBar 683BB - PS/2 & USB
|
|
|
|
|
|
|
|
Product Highlights
|
|
|
|
Description:
|

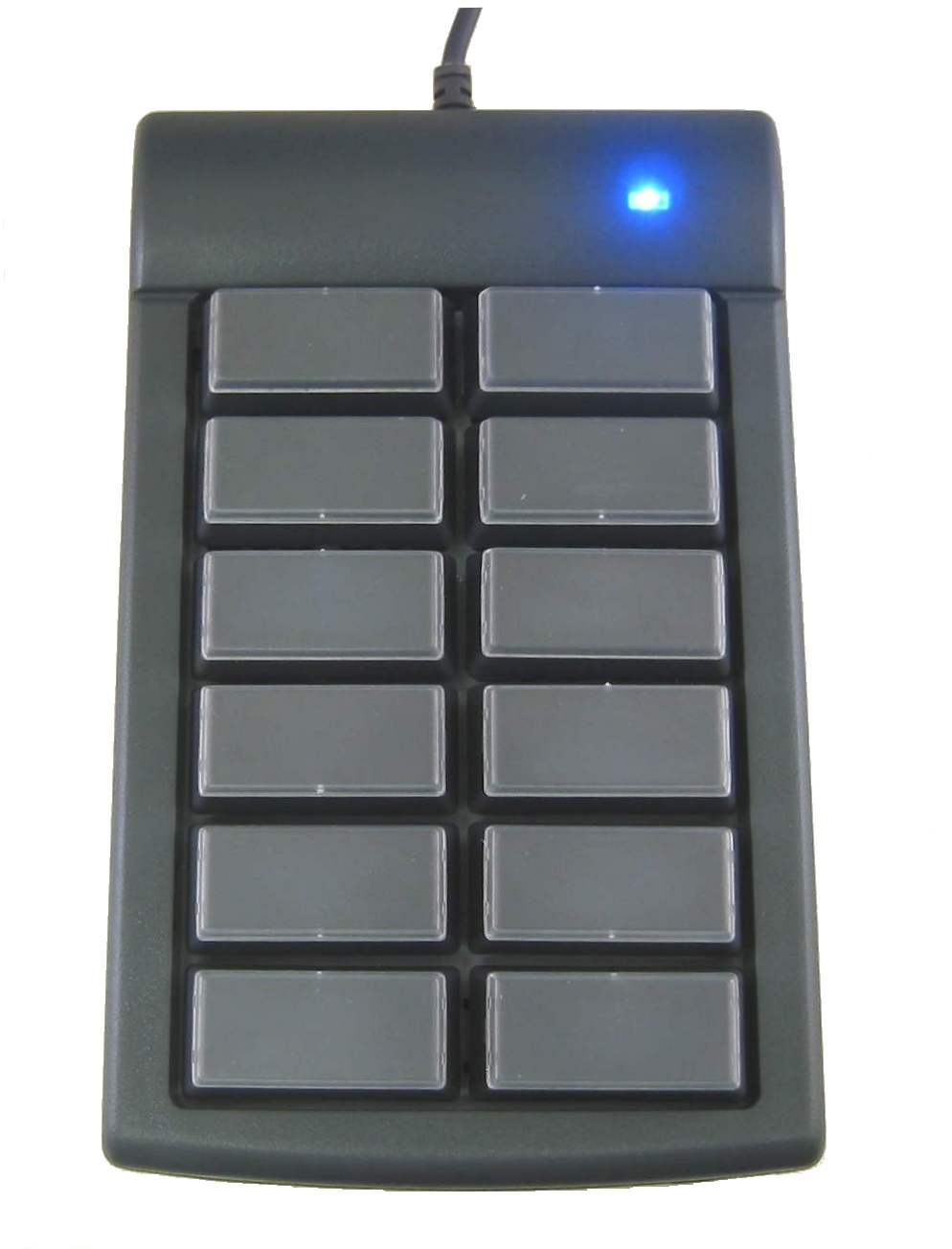

The BumpBar 683BB is a versatile, cost-effective, programmable bump bar. Assembled with high quality
Cherry MX keyswitches on a metal frame. The keys are durable, yet light and easy
to press -- a feature lacking on lesser quality devices.
The keys are relegendable, allowing the user to label them to fit a specific need.
The double keys can be arranged horizontally or vertically. They
can also be split into single keys. Custom key caps can be ordered.
The bump bar is easily configured using the Windows software provided. The
non-volatile, programmable memory allows the keypad to connect to any USB or PS/2
port without installing resident software.
Ships with 12 Double Keys and a Keycap Puller. Additional key caps can be
purchased here. Optional protective latex covers available.
- 2-level programmable, up to 48 keys
- Programmable LED
- Supports all keys codes including F1 through F24
- Low power consumption, automatically port powered.
- Uses the highest quality key switches rated at 50 million operations
- 1-year warranty
For more information on customizing your own version, please see
PDF brochure or call us at
949-833-3355.
|
|
|
|
Type:
|
Universal, 24-key, fully-programmable
|
|
Keys:
|
12 double key caps over 24 switches
|
|
Interface:
|
PS/2 or USB (1.0, 1.1, 2.0)
|
|
Programmable:
|
Yes
|
|
LED:
|
Blue
|
|
Color:
|
Dark Gray
|
|
Dimension:
|
15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
|
|
Unit Weight:
|
0.30 kg (0.65 lbs)
|
|
Ship Weight:
|
0.45 kg (1.00 lbs)
|
|
|
|
|
|
|
OS Requirements
|
|
|
|
OS Supported:
|
Programming software requires Windows OS:
- Windows 95 / 98 / Me / NT / 2000 / XP / Vista
Once programmed, operates on any OS and any PC with USB or PS/2:
- Windows / Mac OS / Linux / DOS / etc.
|
|
|
|
|
|
|
Specifications
|
|
|
|
•
|
Attached cable is 1.8m (6 ft) long
|
|
•
|
Consumes less than 10mA
|
|
•
|
Power drawn from PS/2 or USB port
|
|
•
|
Complies with FCC Class B standards
|
|
•
|
Uses gold plated industrial quality mechanical key switches
|
|
•
|
Total Switch travel is 3.5 mm (0.14")
|
|
•
|
Operating force is 0.686N {79gf}
|
|
•
|
Key life: 50,000,000 cycles
|
|
•
|
Includes redefinition program (MacroMaster683.exe)
|
|
•
|
Software driver not required for operation
|
|
•
|
Temperature range is 0 to 70 C (32 to 158 F)
|
|
•
|
15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
|
|
•
|
EEPROM is non-volatile, >100 year retention.
|
|
•
|
Will boot PC standalone in either PS/2 or USB mode
|
|
|
|
|
|
|
Ordering Information
|
|
|
|
683BB: (PS/2+USB version)
The PS2 "Y" wedge adapter allows this keypad to wedge a standard PS/2 external
keyboard or other PS2 device to a USB or PS/2 host. The 683BB detects PS/2 or USB
host ports and functions as PS/2 keyboard or USB HID keyboard automatically.
683BBU: (USB-only version)
USB HID compatible. Standard 6' USB cable with Type A plug.
|
|
|
|
|
|
Software
|
|
File Type
|
OS Supported
|
File(s)
|
File Name
|
|
MacroMaster683 Software (May '08)
|
Windows 95/98/Me, NT/2K/XP, Vista 32-bit
|
Download Now
|
683ver5_10.exe
|
|
|
|
|
User Manual
|
|
Manual
|
File(s)
|
File Type
|
|
ControlPad 683 Quick Start
|
Download Now
|
PDF Files (300KB)
|
|
ControlPad 683 Manual (Nov 2008)
|
Download Now
|
PDF Files (2MB)
|
|
| |
|
