ControlPad 683 PS/2 & USB
|
|
| |  | | | Product Highlights | | | Description: |
Now shipping with 3 Double Keys and a Keycap Puller. Additional Key Caps can be purchased
here

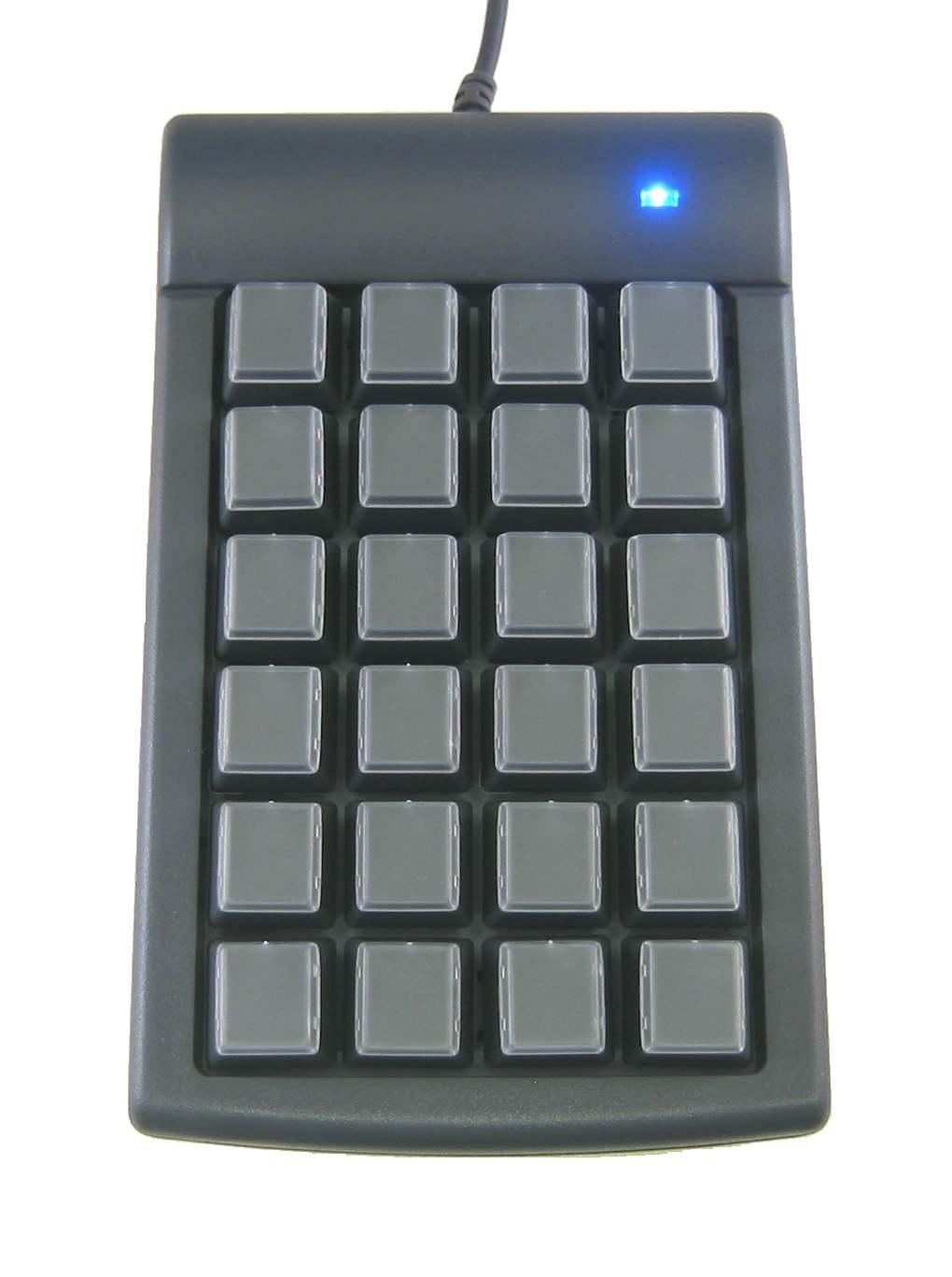

The ControlPad 683 is versatile, 24-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The non-volatile built-in ROM allows the keypad to connect to most IBM compatible PCs without installing resident software. The keypad is easy to program using the Windows compatible software provided. Assembled with high quality Cherry keyswitches, the keys are durable, yet light and easy to press--a feature lacking on lesser quality keypads.
The PS2 "Y" wedge adapter allows this keypad to wedge a standard PS/2 external keyboard. Automatically detects PS/2 or USB host ports,
functions as PS/2 keyboard or USB HID keyboard interchangeably.
- 24 re-legendable keys
- 3 double keys and a keycap puller included
- PS/2 "Y" wedge adapter cable
- PS/2-to-USB adapter included
- 2-level programmable (equivalent to 48 keys)
- Optional protective latex covers available
- Low power consumption
- 1-year warranty
For more infomation on customizing your own keypad, please see
PDF brochure or call us 949-833-3355. | | | Type: | Universal, 24-key,
fully-programmable | | Interface: | PS/2
or USB (1.0, 1.1, 2.0) | | Keys: | 24 | | Programmable: | Yes | | Color: | Light
Gray | | Dimension: | 15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5") | | Ship
Weight: | 1.o kg (0.65 lbs)
| | | | | OS Requirements | | | OS Supported: | Programmable
under any recent Windows OS:
- Windows 95 / 98 / Me
/ NT / 2000 / XP / Vista
Operates
pre-programmed on any
OS that supports USB HID or PS/2 (Win/Mac/Linux)
| |
|
|
| Specifications | |
| • |
Attached PS/2 cable is 1.5m (5 ft) long |
| • |
PS/2-to-USB adapter included |
| • |
Consumes less than 5mA |
| • |
Power supplied by PS/2 or USB port |
| • |
Complies with FCC Class B standards |
| • |
Includes redefinition program (MacroMaster683.exe) |
| • |
Uses gold plated industrial quality mechanical key switches |
| • |
Total Switch travel is 3.5 mm (0.14") |
| • |
Operating force is 0.686N {79gf} |
| • |
Key life: 5 x 107 cycles |
| • |
Software driver not required for operation |
| • |
Temperature range is 0 to 70 C (32 to 158 F) |
| • |
15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5") |
| • |
Weight of Keypad alone is 0.3kg (0.65 lbs) |
| • |
Keypad with single ship pack is 1 kg (2.0 lbs) |
| • |
Connects between computer and system keyboard |
| • |
Will boot PC standalone in either PS/2 or USB mode |
|
| |
|
Driver / Software
|
|
File Type
|
OS Supported
|
File(s)
|
File Name
|
|
MacroMaster683 Software
|
Windows 95/98/Me, NT/2K/XP
|
Download Now
|
Controlpad 683-4.0.EXE
|
|
MacroMaster683 Software (Mar '07)
|
Windows 95/98/Me, NT/2K/XP, Vista 32-bit
|
Download Now
|
683ver4_20.exe
|
|
|
|
|
User Manual
|
| Manual | File(s) | File
Type | | ControlPad 683
Quick Start | Download Now | PDF Files |
| ControlPad 683 Manual (March 2007) | Download Now | PDF Files |
| | |
|
