| ControlPad 682 PS/2 & USB | | | |  | | | Product Highlights | | | Description: |
Additional Key Caps can be purchased
here
The ControlPad 682 is versatile, 35-key programmable keypad. The keys are
relegendable, allowing the user to label them to fit a specific need. The internal
FLASH memory allows the keypad to connect to most PCs regardless of the OS
without installing resident software. The keypad is easy to program using the
Windows compatible software provided. Assembled with high quality Cherry key
switches, the keys are durable, yet light and easy to press -- a feature lacking on
lesser quality keypads. The PS2 "Y" wedge adapter allows this keypad to wedge a
standard PS/2 external keyboard. Automatically detects PS/2 or USB host ports,
functions as PS/2 keyboard or USB HID keyboard interchangeably.
- 35 fully programmable keys with relegendable keycaps
- PS/2 keyboard with "Y" wedge adaptor for external PS/2 keyboards
- Includes PS/2-to-USB plug adaptor
- Pre-programmable internal flash memory and operates stand alone
- 2-level programmable (equivalent to 70 keys)
- Uses the highest quality key switches rated at 50 million operations
- Will boot PC stand-alone on PS/2 port or USB (USB boot protocol)
- Optional protective latex covers available
- Low power consumption
- 1-year warranty
For more infomation on customizing your own keypad, please see
PDF brochure or call us 949-833-3355. | | | Type: | Universal, 35-key,
fully-programmable keypad | | Interface: | PS/2
or USB (1.0, 1.1, 2.0) | | Keys: | 35 | | Programmable: | Yes | | Color: | Light
Gray | | Dimension: | 11.7cm x 15.3cm x 3.8cm (4.6"
x 6" x 1.5") | | Ship
Weight: | 2.0
lbs | | | | | OS Requirements | | | OS Supported: | Programmable
under any recent Windows OS:
- Windows 95 / 98 / Me
/ NT / 2000 / XP / Vista
Operates
pre-programmed on any
OS that supports USB HID or PS/2 (Win/Mac/Linux)
|
|
|
|
|
|
| Specifications |
|
| • |
Attached PS/2 cable is 1.5m (5 ft) long |
| • |
PS/2-to-USB adapter included |
| • |
Consumes less than 5mA |
| • |
Power supplied by PS/2 or USB port |
| • |
Complies with FCC Class B standards |
| • |

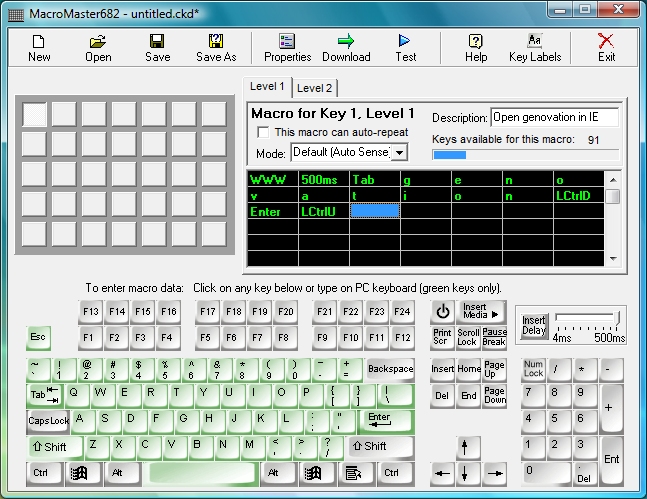

Includes redefinition program (MacroMaster682.exe) |
| • |
Uses gold plated industrial quality mechanical key switches |
| • |
Key life: 5 x 107 Cycles |
| • |
Momentary contact with tactile sound |
| • |
Temperature range is 0 to 70C (32 to 158F) |
| • |
Weight of keypad alone is 0.4 kg (0.75 lb) |
| • |
Keypad with single ship pack is 1 kg (2 lb) |
| • |
Relative humidity: 0% to 98% |
| • |
Will boot PC standalone in either PS/2 or USB mode |
|
| |
|
Driver / Software
|
|
File Type
|
OS Supported
|
File(s)
|
File Name
|
|
MacroMaster682 Software
|
Windows 95/98/Me, NT/2K/XP
|
Download Now
|
Controlpad 682-4_0.exe
|
|
MacroMaster682 Software (Mar '07)
|
Windows 95/98/Me, NT/2K/XP, Vista 32-bit
|
Download Now
|
682ver4_20.exe
|
|
|
|
|
User Manual
|
|
Manual
|
File(s)
|
File Type
|
|
ControlPad 682 Quick Start
|
Download Now
|
PDF Files
|
|
ControlPad 682 User Manual (March 2007)
|
Download Now
|
PDF Files
|
|
|
|
|
