Control Pad 681 RS-232 & USB

(SKU's: 681, 681-U)



Downloads

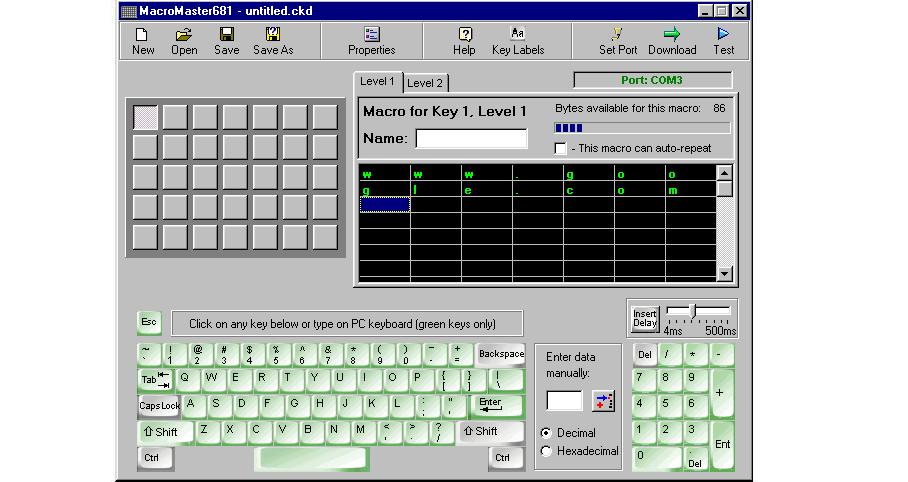

Product Sheet PDF Drivers & Manuals Screen Shot

Product Highlights

Description:	Additional Key Caps can be purchased here The Controlpad 681 is a versatile, 35-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The internal FLASH memory allows the keypad to function stand alone on either a standard serial COM port or via a USB virtual serial COM port. The keypad is easy to program using the Windows compatible software provided. Assembled with high quality Cherry key switches, the keys are durable, yet light and easy to press -- a feature lacking in lesser quality keypads. Available with a true RS232 compatible DB-9 serial connection, or USB virtual serial connection for newer PC’s without COM ports. Supports a wide variety of baud rates and word formats. RS232 Serial interface or USB virtual serial COM port Once programmed, will operate on any operating system as an RS232 device "Industrial strength" mechanical key-switches 35 fully programmable keys with relegendable keycaps Store up to 70 custom macros (2 levels, 35 keys each) Macro length 200 bytes per key (100 each level) Fully programmable under Windows Optional protective latex covers available 1 year warranty For more infomation on customizing your own keypad, please see PDF brochure or call us 949-833-3355.

Type:	Universal, 35-key Fully-Programmable Keypad
Interface:	Serial RS-232 (DB-9) or USB (Type A conenctor)
Keys:	35
Programmable:	Yes
Color:	Light Gray
Dimension:	6" x 4.6" x 1.5"
Weight:	0.75 lb

OS Requirements

OS Supported:

USB: Windows 98se / Me / 2000 / XP
RS-232: Works with any OS (DOS/Win/Linux/etc)
Supplied redefinition program works under Windows or write your own application.

Specifications

•	Connect to serial port or USB
•	Complies with FCC Class B standards
•	Includes redefinition program MacroMaster232
•	Uses full travel gold plated switches
•	Total Switch travel is 3.5 mm (0.14")
•	Operating force is 0.686N{79gf}
•	50 million cycles
•	Momentary contact
•	Temperature range is 0 to 70 C (32 to 158 F)
•	Keypad size is 15cm x 11cm x 3cm (6.0" x 4.6" x 1.5")
•	Weight of Keypad alone is 0.4 kg (0.75 lbs)
•	Keypad with single ship pack is 1 kg (2 lbs)
•	Attached serial cable is 5 ft (1.5m) long

Driver / Software

File Type	OS Supported	File(s)	File Name
MacroMaster681 Software	Windows 95/98/Me, NT/2K/XP	Download Now	Controlpad 681-4_0.exe

User Manual

Manual	File(s)	File Type
ControlPad 681 Quick Start	Download Now	PDF Files
ControlPad 681 User Manual (May 2005)	Download Now	PDF Files
