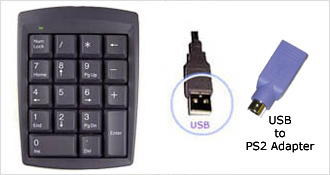

Micropad 631 USB & PS/2 Numeric Keypad
(SKU#631)


   Downloads

       Product Sheet PDF

       Drivers & Manuals



Product Highlights
Description:   The MicroPad 631 keypad is a USB and PS/2 numeric keypad. With the supplied USB-to-PS/2 adapter, the MicroPad 631 can be used with any computer. Easy to use, no software to install, just plug in and start working.
  • 18 keys
  • USB & PS/2 connections
  • USB-to-PS/2 adapter included
  • Full size numeric keypad
  • NumLock-Proof: Switchable normal and non-synching NumLock modes (great for laptops)!
  • Plug & Play
  • No software required
  • Low power consumption
  • 1-year warranty
Type:   Universal, 18-key keypad
Interface:   USB & PS/2
Keys:   18
Color:   Dark Gray
Dimension:   5" x 3.75" x 1"
Weight:   0.35 lbs (0.16kg)
OS Requirements
OS Supported:   Windows 98 / Me / 2000 / XP / Vista / Mac / Linux
Any OS that supports PS/2 and/or USB
Specifications
•   Connects to the USB or PS/2 port (USB-to-PS/2 adapter included)
•   Attached cable length is 3" (1m)
•   Very low power consumption
•   Plug and Play connection
•   Uses full travel tactile switches rated at 20,000,000 operations
•   Total switch travel is 2mm (0.1")
•   Temperature range is 5 to 50 C (41 to 122 degrees F)
•   Keypad size is 5" x 3.75" x 1" (12.5cm x 9.5cm x 2.5cm)
•   Keypad weight is 0.35 lbs
•   Relative humidity range is 10% to 80% non condensing
•   Complies with FCC Class B standards
•   Will boot PC standalone in either PS/2 or USB mode


User Manual
Manual File(s) File Type
Micropad 631 Quick Start Download Now PDF Files
