Micropad 623 RS-232 Serial Numeric Keypad
(SKU # 623)



    Downloads

       Product Sheet PDF

       Drivers & Manuals

       GenCalc623(NEW)

Product Highlights
Description:   The Micropad 623 is the highest quality serial numeric keypad on the market. It enables notebook PC users to speed through number crunching with ease. Built with high quality Cherry keyswitches (50 million life cycles). The keys are durable, yet light and easy to press, a feature lacking on lesser quality keypads.

Bonus features are two legacy applications included with the software driver diskette: Gencalc (calculator software), and Macromaster (hot-keys software).

  • 21 keys
  • Serial port connection (RS232C) 9-pin
  • Full-size numeric keypad
  • Extra keys: "Tab", "Backspace", "Esc", and "\" keys included
  • Optional protective latex covers available
  • Low power consumption
  • 1-year warranty
  • Requires driver program to be installed on available serial port
  • Installation CD-ROM included
Type:   Universal, 21-key keypad
Interface:   Serial
Keys:   21
Programmable:   Yes
Color:   Dark Gray
Dimension:   6.1" x 3.75" x 1.5"
Weight:   0.5 lb
OS Requirements
OS Supported:   Windows 95 / 98 / Me / NT / 2000 / XP / Vista
Specifications
•   Connects to DB-9 serial port
•   Operates from voltage available on the COM port
3.5 to 15 volts (@ 15mA)
•   Operates with Win95/98/ME, NT4/2000/XP
•   Complies with FCC Class B standards
•   Includes installation and redefinition program
•   Uses full travel switches (non-tactile) manufactured by Cherry Corp.
•   Operating force is 0.686N {79gf}
•   Temperature range is 0 to 70 degrees C.
32 to 158 degrees F.
•   Keypad size is 15.5cm x 9.6cm x 3.5cm
6.1" x 3.75" x 1.5"
•   Weight of keypad alone is 0.3kg (0.65 lbs)
•   Keypad with bulk pack sleeve is 0.37kg (0.82 lbs)
•   Keypad with single ship pack is 1.0kg (2.0 lbs)
•   Relative humidity: 0% to 98% non-condensing
•   Attached serial cable is 1.5m (5') long
•   Communication Rate: 1200 baud (8 N 1)
•   Key life Cycles: 5 x 107 cycles
•   Color: Dark grey

GenCalc623 (New)
Description File(s) File Type

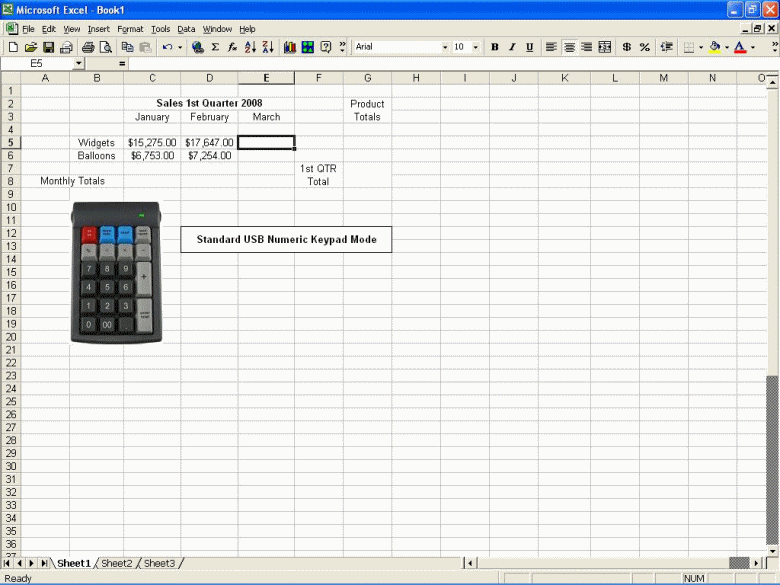

Screen Shot View Animated
GIF
GenCalc623 Manual - March 2008
(Beta)
Download Now PDF Files
GenCalc623 Installation - Windows 2k / XP / Vista
(Beta)
Download Now Setup EXE

Legacy Driver / Software
File Type OS Supported File(s) File Name
DOS Driver DOS 3.x or later Download Now 8010-623.exe
Software Windows 95 / 98 / Me / NT / etc Download Now 623ver5-60.exe

Legacy User Manual
Manual File(s) File Type
Quick Start Guide Download Now PDF Files
Macro Redefinition Manual Download Now PDF Files

Developer Information
File Type OS Supported File(s) File Name
Developer Manual Hardware/Comms (All OS)
Software API (Windows)
Download Now PDF Files
Developer DLL package Win32 API Download Now Kybd623Dll.zip
